5/8" 2 Bolt Stamped Steel Flange Bearing SBSFL202-10

Item Number: 1-1869

Price: $11.30

TOP

Description
Ask A Question
Recently Viewed

Home
Bearings
Pressed Steel 2 Bolt Flange Bearings
5/8" 2 Bolt Stamped Steel Flange Bearing SBSFL202-10

5/8" 2 Bolt Stamped Steel Flange Bearing SBSFL202-10

✓Add to Wishlist

calculate shipping

This item is on page 103 of our current catalog

print page

Description
Ask A Question
Recently Viewed

Description

DESCRIPTION

5/8" STEEL FLANGE BEARING

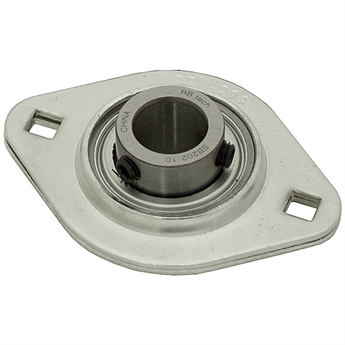

Brand new, sealed self aligning ball bearing with two bolt stamped steel two piece housing. Model SBSFL202-10. Bearing is centered in housing. Inner race has 2 set screws for locking to shaft.

SPECIFICATIONS

Bore 5/8"
Bore thru length 7/8"
Mount 2 bolt, 2-1/2" c/c
Bolt size 1/4" sq.
Size 3.189" x 2.3125" x 0.875"
Shpg. 1/2 lb.

Ask A Question

ASK A QUESTION

Submit a question for this product

Showing Questions of 2

do you have any information about max. rpms or load rating, etc.

A: The maximum rpm rating is 5000. At that speed the maximum radial load is 315 lbs. At 33 rpm the maximum load rating is 1675 lbs. At 900, 560 lbs, and 805 lbs at 300 rpm.
Date Submitted: 09/27/2017

Hi, We are interested in your products. Could you provide the drawing and CAD model for the following product: 5/8" 2 BOLT STAMPED STEEL FLANGE BEARING ITEM NUMBER: 1-1869 Thanks! Best, Frank ADE Food Processing

5/8" 2 Bolt Stamped Steel Flange Bearing SBSFL202-10

Item Number: 1-1869

5/8" 2 Bolt Stamped Steel Flange Bearing SBSFL202-10

5/8" 2 Bolt Stamped Steel Flange Bearing SBSFL202-10

Showing Questions of 2

do you have any information about max. rpms or load rating, etc.

A: The maximum rpm rating is 5000. At that speed the maximum radial load is 315 lbs. At 33 rpm the maximum load rating is 1675 lbs. At 900, 560 lbs, and 805 lbs at 300 rpm.Date Submitted: 09/27/2017

Hi, We are interested in your products. Could you provide the drawing and CAD model for the following product: 5/8" 2 BOLT STAMPED STEEL FLANGE BEARING ITEM NUMBER: 1-1869 Thanks! Best, Frank ADE Food Processing

A: We do not have diagrams or CAD models for these products at this time.Date Submitted: 04/15/2016

5/8" 2 Bolt Stamped Steel Flange Bearing SBSFL202-10

A: The maximum rpm rating is 5000. At that speed the maximum radial load is 315 lbs. At 33 rpm the maximum load rating is 1675 lbs. At 900, 560 lbs, and 805 lbs at 300 rpm.
Date Submitted: 09/27/2017

A: We do not have diagrams or CAD models for these products at this time.
Date Submitted: 04/15/2016
