Description

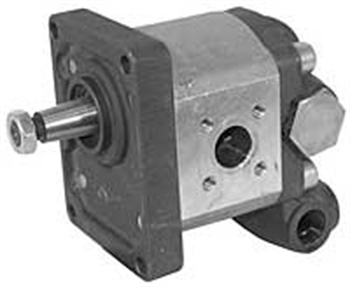

0.67 cu in BOSCH 0510525322 HYDRAULIC GEAR PUMP
New, Bosch 0510525322 hydraulic gear pump with integrated flow control valve. Residual flow is returned internally.

SPECIFICATIONS
  • Manufacturer Bosch
  • Model 0510525322
  • Part Number AZPF-10-011LHO20MSXXX25-S0002
  • Disp. 0.67 cu. in. / rev.
  • Pump Type Gear
  • Rotation CCW
  • Pressure:
       3625 PSI cont.
       4061 PSI int.
  • Speed:
       600 RPM min.
       3500 RPM max.
  • Flow:
       1.74 GPM @ 600 RPM
       10.15 GPM @ 3500 RPM
  • Mount 4 bolt, 0.318"(8mm) holes on 2.79"(71mm) x 3.78"(96mm) centers
  • Shaft 11/16" tapered x 1-3/8" long w/ woodruff key, threaded M12-1.5
  • Inlet Port 20 mm 4 bolt flange
  • Outlet Port M18-1.5 metric port
  • Size 6" x 3-1/2' x 5-1/4"
  • Shpg. 13 lbs.
