Description

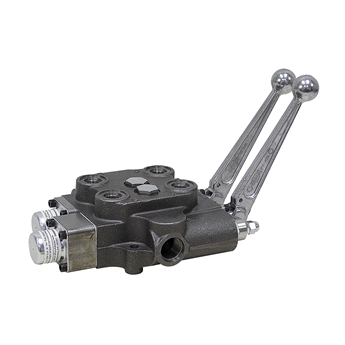

2 SPOOL DOUBLE ACTING DIRECTIONAL CONTROL VALVE
Brand new CROSS BA2A1XAG3EC0 series directional control valve with first spool float for operating double acting cylinders. Features include built-in adjustable pressure relief valve, open center, side inlet/outlet and top work ports. Intergral load holding check valves. Can be converted to power beyond.

SPECIFICATIONS
  • Brand Cross Mfg.
  • Model# SBAF2-ORB
  • Cross Item# 143816
  • Open Center
  • Spools Two
  • Flow 30 GPM max.
  • Pressure 3000 PSI max.
  • Relief Valve Adjustable 1500-3000 psi (set at 2000 psi)
  • In/Out Ports SAE 12
  • Work Ports SAE 8
  • Mount Three, 3/8" dia. holes
  • Size 13.25" x 7.3" x 7.13"
  • Shpg. 24 lbs.


Spool Details:
  Spool 1 Double-acting cylinder spool, spring to center w/ 4th position float detent
  Spool 2 Double-acting cylinder spool, spring to center
