Description
0.37 cu in DYNAMIC GPF1061PC HYD PUMP

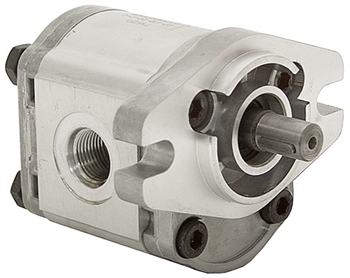

Brand new, DYNAMIC GP-F10 series hydraulic gear pump. Aluminum housing.

SPECIFICATIONS
  • Disp. 0.37 cu. in. / rev.
  • Pump Type Gear
  • Rotation CW
  • Pressure:
      2900 PSI rated
      3480 PSI peak
  • Speed:
      2000 RPM rated
      4000 RPM max.
  • Flow:
      2.98 GPM rated.
      5.96 GPM max.
  • Mount 2 bolt SAE AA
  • Shaft 1/2" dia. x 1-1/16" long with 1/8" wide keyway
  • Rqd. Filtration 25 micron
  • Inlet Port SAE 8
  • Outlet Port SAE 6
  • Size 3-13/16" x 4-1/32" x 3-5/16"
  • Shpg. 6 lbs.
More Specs

MORE INFO

Click to view...

Instructions
Ask A Question
Submit a question for this product

Showing Questions of 4

Will this pump work on a 40 horse tractor with a add-on front end loader

A: There are a number of unanswered questions which could prevent use. Please contact our Product Support Department to discuss your application.

When loooking from the front of the pump, shaft facing you, is the inlet on the left or right?

A: Facing the shaft with the driven gear on top and the idler (belly) gear on bottom, a CW pump's inlet would be on the left side. The incoming oil would travel around the outside of the gears, compressing between the meshing teeth on the right side providing flow and pressure. Typically on a rotation specific pump, the inlet is the larger port, and the outlet is the smaller.

is CW or CCW facing the back of the pump or facing the shaft.

A: In our terminology rotation is always called out facing the shaft.

What is the length of the shaft? Can it be belt driven?

A: The shaft is 1-1/16" long. These pumps cannot be belt driven.
