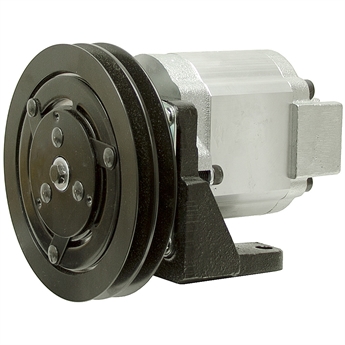

2.32 cu in Hydraulic Clutch Pump w/ Dual Groove V-Belt Pulley

Item Number: 9-1738

Price: $699.10
TOP
Back to top

2.32 cu in Hydraulic Clutch Pump w/ Dual Groove V-Belt Pulley

2.32 cu in Hydraulic Clutch Pump w/ Dual Groove V-Belt Pulley

item number: 9-1738 PRICE: $699.10 4 In Stock Regular Stock Item


calculate shipping
Calculate Shipping for Item 9-1738
2.32 cu in Hydraulic Clutch Pump w/ Dual Groove V-Belt Pulley
Item Number: 9-1738
Price: $699.10
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 43 of our current catalog
Description
HYDRAULIC CLUTCH PUMP

Brand new. Hydraulic pump driven by 12 volt DC clutch. For use in marine, agricultural and industrial use. Use for remote hydraulics in service trucks, boats, trucks with automatic transmissions, farm tractors, snowplows, etc.
SPECIFICATIONS
  • 12 VDC operation
  • 2 belt 1/2" A type
  • 7" dia
  • Watts 47
  • Amps 3.9
  • Cast iron foot mount
  • CW
  • 3000 RPM max
  • Rear ports
  • 2.32 cu in/rev
  • 20 GPM at 2000 RPM
  • 2200 PSI max
  • IN SAE 16, OUT SAE 12
  • Overall size (minus pulley) 7-5/8" x 6" x 6-1/4"
  • Shpg 33 lbs
Ask A Question
Submit a question for this product

Showing Questions of 8

How would pulley size affect gpm and psi? I noticed the more gpm the less psi.

A: Of the two clutch pump models we carry, the higher volume pump does have a lower overall pressure rating. This is not due to the pulley size, but rather the limitations of the base model pump being used. The smaller version is a 1.45 in³ pump, with this pump being 2.32 in³. For pumps in general, speed is directly proportional to output; with pressure being limited by both design and available horsepower.

What size ports? Inlet and outlet

A: IN SAE 16, OUT SAE 12

Do you have a counter clockwise option ?

A: No, we do not.

What HP electric motor would I need to run this pump?

A: To operate at the rated 2000 rpm and 2200 psi this pump would consume approximately 30 Hp electric.

Is this pump left hand rotation?

A: These pumps are Clockwise rotation as facing the shaft, or right hand as facing the shaft.

What size Pulley? Is there and option between 5/8"s and 1/2 inch belts?

A: The pulley is 7" diameter for 1/2" belts. There is not an option for 5/8" belts.

Will this work on a wrecker truck it has a single hook and with a Ramsey winch and a wheel lift thank you

A: This would be a good source of hydraulic power for use on your truck. It has sufficient flow and pressure for both your functions.

Does the resevior have to be mounted higher than the pump? (if installed on a straight truck, could it be on the engine, and the tank behind the cab on the frame) Thank you. Rick

A: It is always best to have the fluid flow downward from the reservoir to the pump but this can be difficult for pumps mounted under the hood. As long as the pump is not starved for oil alternate mounting would be acceptable.
