10:1 Right Angle Cast Iron Worm Gear Reducer 7.19 HP Right Output Worldwide HDRS-325-10-R

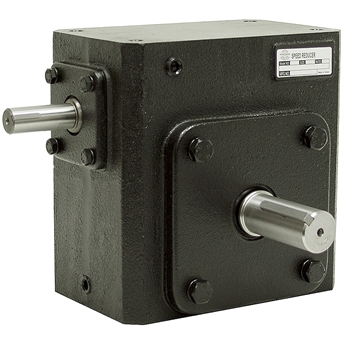

10:1 RIGHT ANGLE WORM GEAR REDUCER
Brand new, WorldWide Electric right-angle worm gear reducer. Cast iron housing. Interior oil channel directly guides and constantly lube bearings. Embedded double-lip oil seals. Tapered roller bearings on output and input shafts. Double bearings used on both shafts. A set of four tapped mounting holes on top and bottom of housing. Shipped filled with Mobil #SHC632 synthetic oil for the "A" position.(Refer to installation and maintenance manual for oil capacity for different mounting positions)

SPECIFICATIONS

• Brand WorldWide Electric
• Model Number HDRS-325-10-R
• Box Size 325 (3.25" Center of Input Shaft to Center of Output Shaft)
• Ratio 10:1
• Input Speed 1750 RPM max.
• Output Speed 175 RPM max.
• Mechanical HP (1.0 SF) Ratings
    Input HP 7.19 HP
    Output Torque 2419 in-lb.
    Output HP 6.46 HP
• Thermal Capacity Ratings
    Input HP 4.63 HP
    Output Torque 1558 in-lb.
    Output HP 4.16 HP
• Efficiency 90%
• Overhung Load 1200 lbs.
• Output Shaft Thrust Load 1100 lbs.
• Output Centerline Height 3.5"
• Input Shaft 7/8" dia. x 2-7/16" keyed
• Output Type Right Hand Shaft
• Output Shaft 1-3/8" dia. x 3-1/4" keyed
• Mount Two sets of four 3/8"-16 tapped holes on 7-1/2" x 4" centers
• Size 10-7/16" x 7-13/16" x 9-3/8"
• Shpg. 82 lbs.
