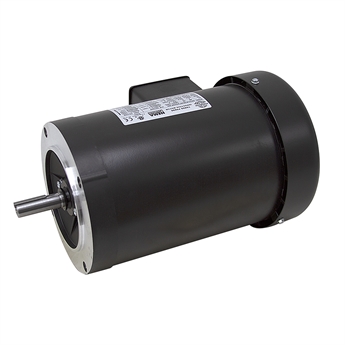

3 HP 230/460 Volt AC 3500 RPM 3PH WWE NATE3-36-56CRD Motor

3 HP 3500 RPM 3PH 230/460 VAC FACE MOUNT MOTOR
Brand new, WORLDWIDE NATE3-36-56CRD, general purpose 3-phase motor for use in blowers, pumps, conveyors, and many other diverse applications. Totally Enclosed Fan Cooled (TEFC) enclosures.

SPECIFICATIONS

• Power 3 HP
• Voltage 230/460 AC
• Phase 3
• Frequency 60 Hz
• Amperage 7.38/3.69 Amps
• Speed 3500 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearings Ball
• Thermal Overload Protection None
• Enclosure TEFC
• Duty Continuous
• Frame 56C
• Face Mount Four 3/8"-16 threaded holes on 5-7/8" B.C., 4-1/2" pilot
• Shaft 5/8" dia. x 1-7/8" overall length w/ 3/16" wide x 1-3/4" long keyway
• Size 12-1/2" x 8-3/4" x 7-1/4"
• Shpg. 44 lbs.
