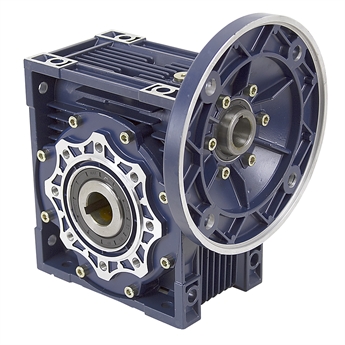

Aluminum Right Angle Worm Gear Reducer, 90 mm C.D., 15/1, 56C Input Flange, Hollow Bore Output Worldwide CALM90-15/1-56C

Item Number: 13-1583-15-56C

Price: $503.10

TOP

Description
Recently Viewed

Home
Brands
Worldwide Electric
Aluminum Right Angle Worm Gear Reducer, 90 mm C.D., 15/1, 56C Input Flange, Hollow Bore Output Worldwide CALM90-15/1-56C

Aluminum Right Angle Worm Gear Reducer, 90 mm C.D., 15/1, 56C Input Flange, Hollow Bore Output Worldwide CALM90-15/1-56C

✓Add to Wishlist

calculate shipping

print page

You may also consider:

Single Output Shaft For Size 90 Worldwide Aluminum Reducer CALM90-S 13-1583-S $48.55
Double Output Shaft For Size 90 Worldwide Aluminum Reducer Worldwide CALM90-DS 13-1583-DS $67.30
Output Flange For Size 90 Worldwide Aluminum Reducer CALM90-OPF 13-1583-OPF $57.60
Output Cover For Size 90 Worldwide Aluminum Reducer CALM90-OPC 13-1583-OPC $11.80
Torque Arm For Size 90 Worldwide Aluminum Reducer CALM90-TA 13-1583-TA $61.10

Description
Recently Viewed

Description

DESCRIPTION

Aluminum Right Angle Worm Gear Reducer, 90 mm C.D., 15/1, 56C Input Flange, Hollow Bore Output
Brand new, World Wide Electric aluminum worm gear reducer. Aluminum alloy housings. Gearbox flanges are designed to accept NEMA C-Face electric motors. Pre-filled with synthetic oil. Two bearings on the input and output shafts, double lip oil seals, epoxy paint inside and outside for rust prevention, and hollow output bores to accept plug-in output shafts (sold separately).

SPECIFICATIONS

Brand World Wide Electric
Model Number CALM90-15/1-56C
Box Size 90 mm Center Distance
Gear Ratio 15:1
Output RPM @ 1750 RPM Input 117 RPM
Input Hp (1.0 S.F.) 7.05 Hp Max
Output Torque 3330 in.-lb. Max
Over-Hung Load 810 lbs. Max
Output Shaft Thrust Load 162 lbs. Max
Efficiency 87 %
Motor Mount 56C
Input Bore 5/8" keyed, 3/16" keyway
Output Bore 1-3/8" keyed, 5/16" keyway
Top & Bottom Mount 140mm x 100mm
Back Mount 172mm x 100mm
Overall Size 9.62" x 6.5" x 10.32"
Shpg. 28 lbs.
