100 RPM 12 Volt DC Gearmotor Allied Motion RA-AFSL-30AN-35

100 RPM 12 VDC STATURE ELECTRIC GEARMOTOR

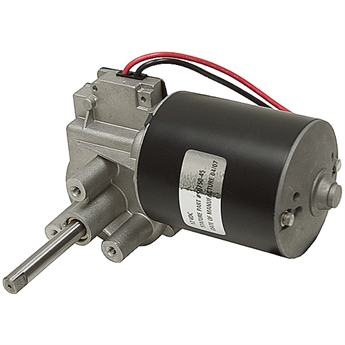

Brand new, ALLIED MOTION model RA-AFSL-30AN-35 right-angle gear-motor. Ball bearings and bronze bushings, steel worm gear, brass output gear and die cast aluminum gearbox. Two pole, permanent magnet motor with internal brushes. Three mounting holes tapped for M6 machine screws. Rated to withstand 300 in-lbs. max back-drive torque.

SPECIFICATIONS

• Brand Allied Motion
• Model RA-AFSL-30AN-35
• Speed 100 RPM
• Voltage 12 DC
• Amperage
     3.0 Amps no load
     6.0 Amps cont.
     62 Amps peak

• Power 1/30 Hp cont.
• Torque 20 in-lbs. cont.
• Gear Ratio 35:1
• Rotation Reversible
• Duty Intermittent
• Enclosure Fully enclosed, IP54
• Mount Face mount, tapped holes
• Shaft 7/16" dia. x 2-7/16",
    one flat at shaft end
• Size 7-3/8" x 3-1/8" x 4-3/8"
• Shpg. 7 lbs.
