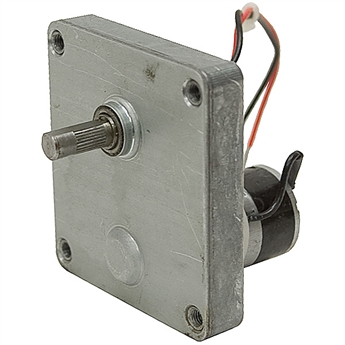

45 RPM 24 Volt DC Molon Gearmotor

Item Number: 5-1257

Price: $9.95
TOP
Back to top

45 RPM 24 Volt DC Molon Gearmotor

45 RPM 24 Volt DC Molon Gearmotor

item number: 5-1257 PRICE: $9.95 Out of Stock - No Longer Available
Calculate Shipping for Item 5-1257
45 RPM 24 Volt DC Molon Gearmotor
Item Number: 5-1257
Price: $9.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
45 RPM, 24 DC


• New MOLON take-offs. Inline parallel shaft gear motor. Rated 24 volt DC, will run on 12 volt DC at lower speed and torque.
SPECIFICATIONS
• RPM 45
• Voltage 24 DC
• Draws 175 mA @ no load
• Torque 38 in. lbs. full load
7.5 in. lbs. cont.
• Rotation reversible
• Duty continuous
• Shaft 5/16" x 3/4" long w/flat
• Mount face 2 3/8" x 2 1/2" drilled/tapped
• Size 2 3/4" x 3" x 2 3/16"
• Shpg. 2 lbs.

Ask A Question

Showing Questions of 8

Is this the model with the motor mounted using screws, or the cheaper ones that are crimped on the case?

A: This motor is mounted using screws.

Do you sell a wheel/tire, either pneumatic or not, that will easily fit directly with this? (Or part 5-1660, which I believe is the same motor) Thanks.

A: We have a number of wheels with a 5/16" bore, but only item 1-5167 has a narrow enough through-bore profile to fit the shaft well.

Is there a specifications drawing for this motor. I am wanting to Create some cad files for the motor mounts.

A: We do not have a technical drawing for this unit, no.

Do you have a resource for the matching connectors (in-line, not PCB mount) used on this motor?

A: We do not, no.

I am building a 7.5 inch scale backyard train. The entire train will weigh about 50 pounds but will obviously be on wheels (4.5 inch). Will this motor have enough power to move this train at 12 volts?

A: There is page of vehicle drive formulae in our item # 9-1022. You could run the variables for your situation through those equations and answer that question if you purchased that, or found them online. We don't have any of the information needed to answer that question.

What is the output speed for gearmotor item #5-1257? On the catalog page 163 it shows it as 35 RPM, however on the search pages it lists as 45 RPM. Thanks

A: 45 RPM under no load is correct.

Do the motor and gearbox make much noise? Not sure you you how you could quantify that. Maybe compared to a computer fan. Thanks,

A: A 52 CFM computer fan and this gearmotor both raise the decibel level in an area from an ambient 62-65 decibel to 73-76 decibel measured at 1' from the devices. The sound quality is somewhat higher tone and grinding from the gears, as opposed to wind noise and motor hum.

Excuse me...Is this not used ?Is it new one?

A: They have never been in use but were mounted into a machine and then take out.
