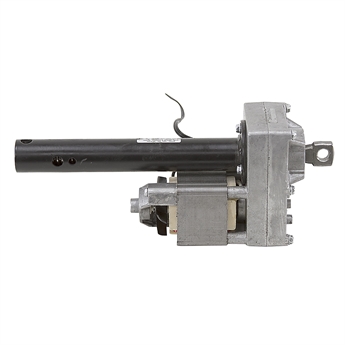

7.25" Stroke 120 Volt AC Linear Actuator Icon Health & Fitness 301953

7.25" STROKE LINEAR ACTUATOR
New, ICON HEALTH & FITNESS model# 301953 linear actuator. Capacitor start, induction run. Power extend and power retract, rated to push up to 900 pounds, retract under no load. Hall effect sensor connected to internal gearing.

SPECIFICATIONS

• Voltage 120 VAC, 60 Hz
• Amperage 1.55 Amps
• Capacity Rated to push 900 lb.
• Thread 3/4"-6 Acme thread
• Stroke 7-1/4"
• Extension Speed 0.085" / sec. (no load)
• Extension Time 85 seconds to Full Stroke, No Load
• Limit Switches No limit switches
• Direction Reversible
• Duty Intermittent
• Retracted length 10-1/8"
• Rod end pin hole 3/8"
• Base end pin hole 3/8"
• Size 11" x 4-1/4" x 3-1/8"
• Shpg. 7 lb.
