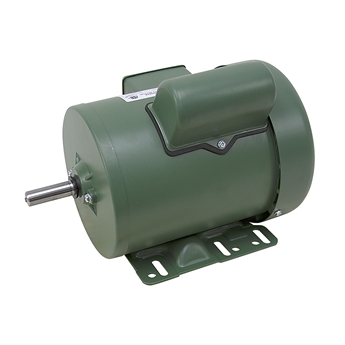

1/3 HP 115/230 Volt AC 1725 RPM WWE FM13-18-56 Farm Duty Motor

1/3 HP 1725 RPM 115/230 VAC BASE MOUNT MOTOR
Brand new, WORLDWIDE FM13-18-56, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/Induction run motor for reduced amperage and high torque. Manual thermal overload protection.

SPECIFICATIONS

• Power 1/3 HP
• Voltage 115/230 AC
• Phase 1
• Frequency 60 Hz
• Amperage 5.2/2.6 Amps
• Speed 1725 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearings Ball
• Thermal Overload Protection Manual
• Enclosure TEFC
• Duty Continuous
• Frame 56
• Base Mount Six 1-1/4" x 5/16" elliptical slots on 2" to 5" x 4-7/8" to 5-7/8" centers
• Shaft 5/8" dia. x 1-7/8" overall length w/ 3/16" wide x 1-3/4" long keyway
• Size 11-3/8" x 8-3/4" x 8"
• Shpg. 29 lbs.
