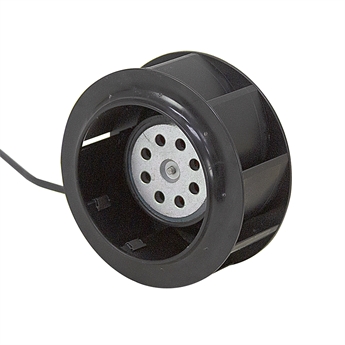

95 CFM 24 Volt DC Reverse Curve Impellor Blower

95 CFM 24 VDC MOTORIZED IMPELLOR

New, MCCLEAN COOLING TECHNOLOGY model 10-1091-180. Backward curved motorized impellor. Use for cabinet cooling, air filtration systems. Air is discharged in 360 degree pattern around impellor. Narrow profile and vertical or horizontal mount to save space. Plastic impellor. Quiet operation with high airflow.  Operates at full speed with power to motor leads. Additional sensor and control leads, no further info available.

SPECIFICATIONS

• Flow 95 CFM max.
• Voltage 24 DC
• Amperage 1.1 Amps
• Speed 6300 RPM
• Mount 3 8-32 tapped holes on back
• Blade Ring 4" dia. x 1.5"
• Inlet  2.75" dia.
• Number of Blades 9
• Size 4" dia. x 2.125"
• Shpg. 1.5 lbs.
