SAE 8 Male x 3/8" NPT Female Swivel 90 Degree Elbow 6901-08-06 Adapter

SAE 8 Male x 3/8" NPT Female Swivel 90 Degree Elbow 6901-08-06 Adapter

item number: 9-6901-8-6 PRICE: $3.55 619 In Stock Regular Stock Item



Available for curbside pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 9-6901-8-6
SAE 8 Male x 3/8" NPT Female Swivel 90 Degree Elbow 6901-08-06 Adapter
Item Number: 9-6901-8-6
Price: $3.55
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 100 of our current catalog
Description

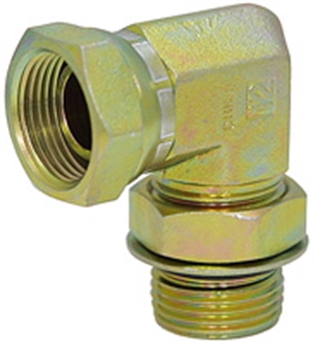

SAE 8 Male x 3/8" NPT Female Swivel 90 Degree Elbow 6901-08-06 Adapter

SPECIFICATIONS
  • Condition Brand New
  • End 1 Type Male SAE
  • End 1 Size SAE 8 (3/4"-16 ORB)
  • End 2 Type Female NPT Swivel
  • End 2 Size 3/8" NPT (3/8"-18 Tapered)
  • Fitting Shape 90 Degree Elbow
  • Working Pressure 4000 PSI
  • Material Carbon Steel
  • Shpg. 3/4 lb.


  • California
    Residents
    Prop 65 Warning WARNING: Cancer and Reproductive Harm
    www.P65Warnings.ca.gov

Ask A Question
Submit a question for this product

Showing Questions of 4

Will the SAE 8M x 3/8 NPTF fittings clear with a Item Number: 9-8602 valve?

A: They will not, no.

Does the Prince MB21BB5C1 valve body work port spacings allow installation of your item number 9-6901-8-6 in all four work ports? In other words can the fittings clear one another when being screwed into the valve block?

A: No, they will not turn past each other. Customers have had to find various combinations of fittings to create the correct orientations while allowing for swivel-to-tight sealing.

Which end has the swivel? The NPT or SAE?

A: The NPT female is the swivel-to-tight end. The SAE end has a washer and backing nut to allow for some directional adaptability.

Is this fitting suitable for connecting a cylinder with SAE 8 ports to a 3/8" hose such as item 903-3896?

A: Yes, this is the correct fitting to use.
