2.5x6x1.12 DA Hydraulic Cylinder PML2506-112

Item Number: 9-12173

Price: $57.95
TOP
Back to top

2.5x6x1.12 DA Hydraulic Cylinder PML2506-112

2.5x6x1.12 DA Hydraulic Cylinder PML2506-112

item number: 9-12173 PRICE: $57.95 93 In Stock Surplus Item



Available for curbside pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 9-12173
2.5x6x1.12 DA Hydraulic Cylinder PML2506-112
Item Number: 9-12173
Price: $57.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 62 of our current catalog
Description

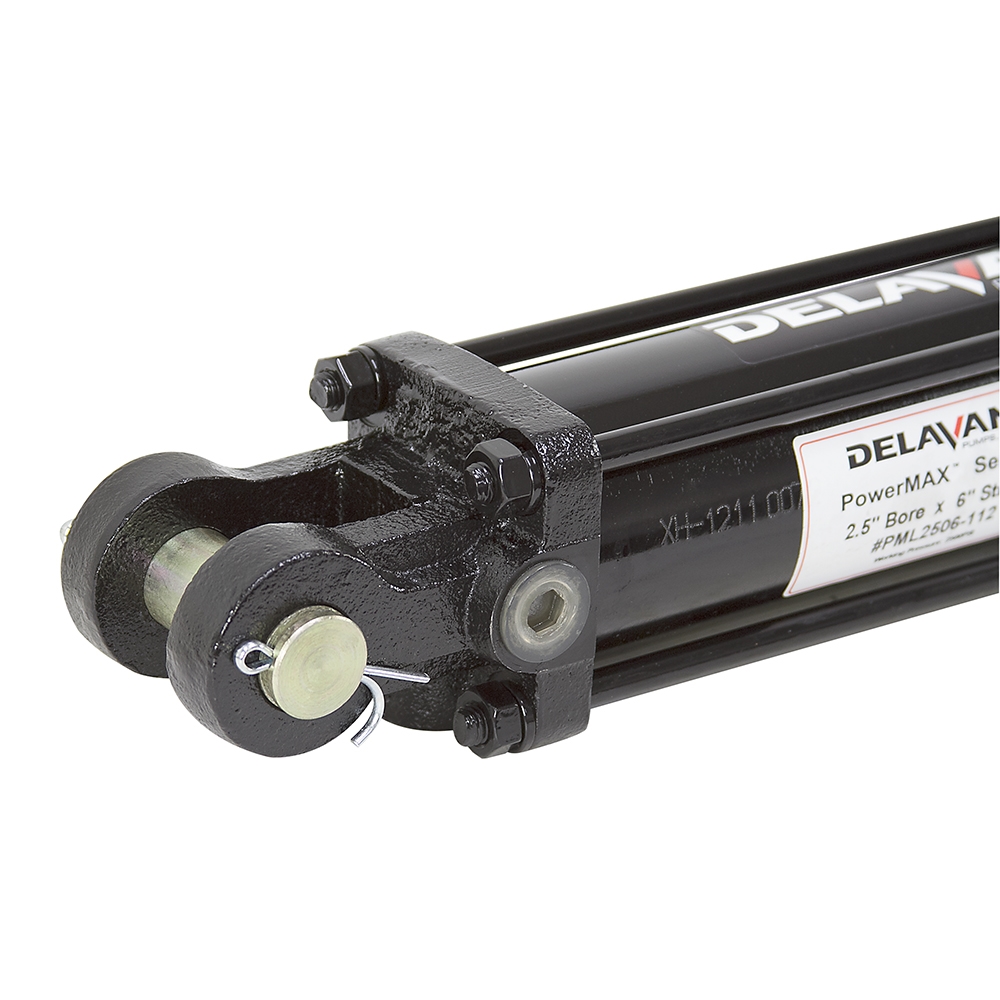

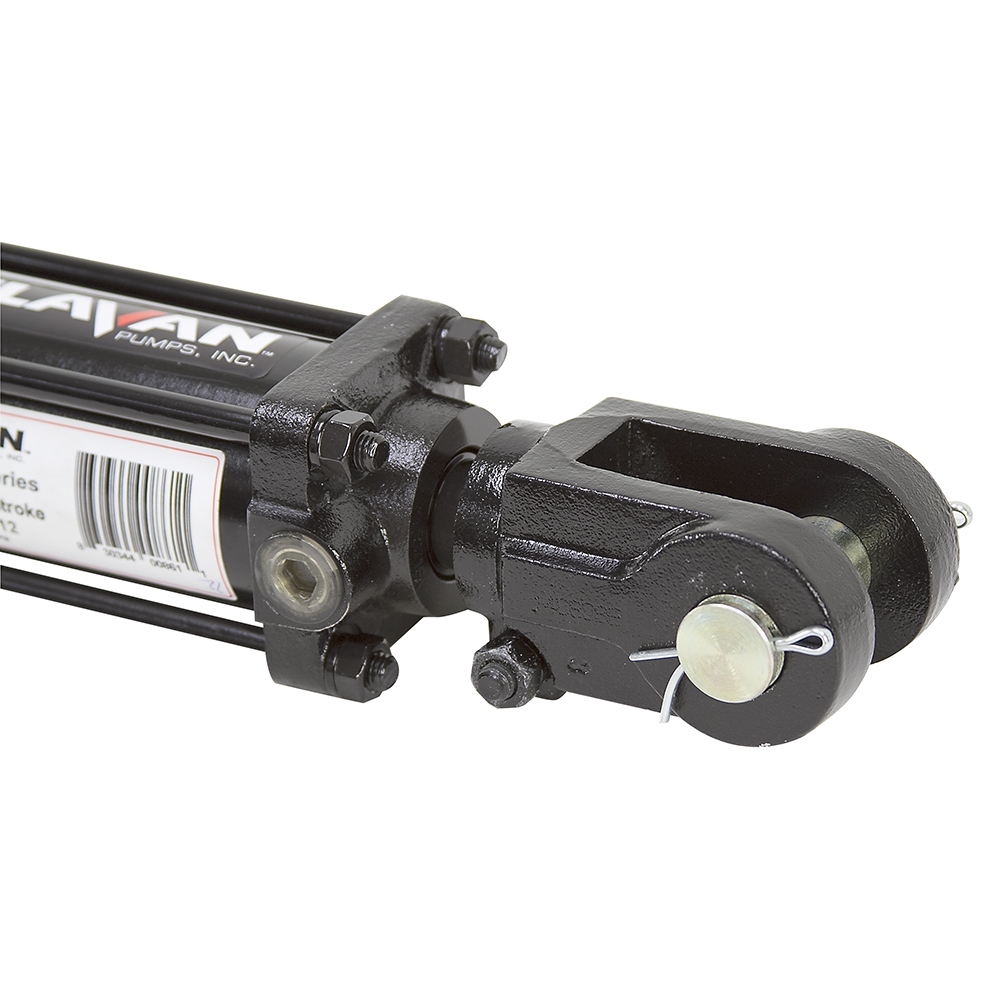

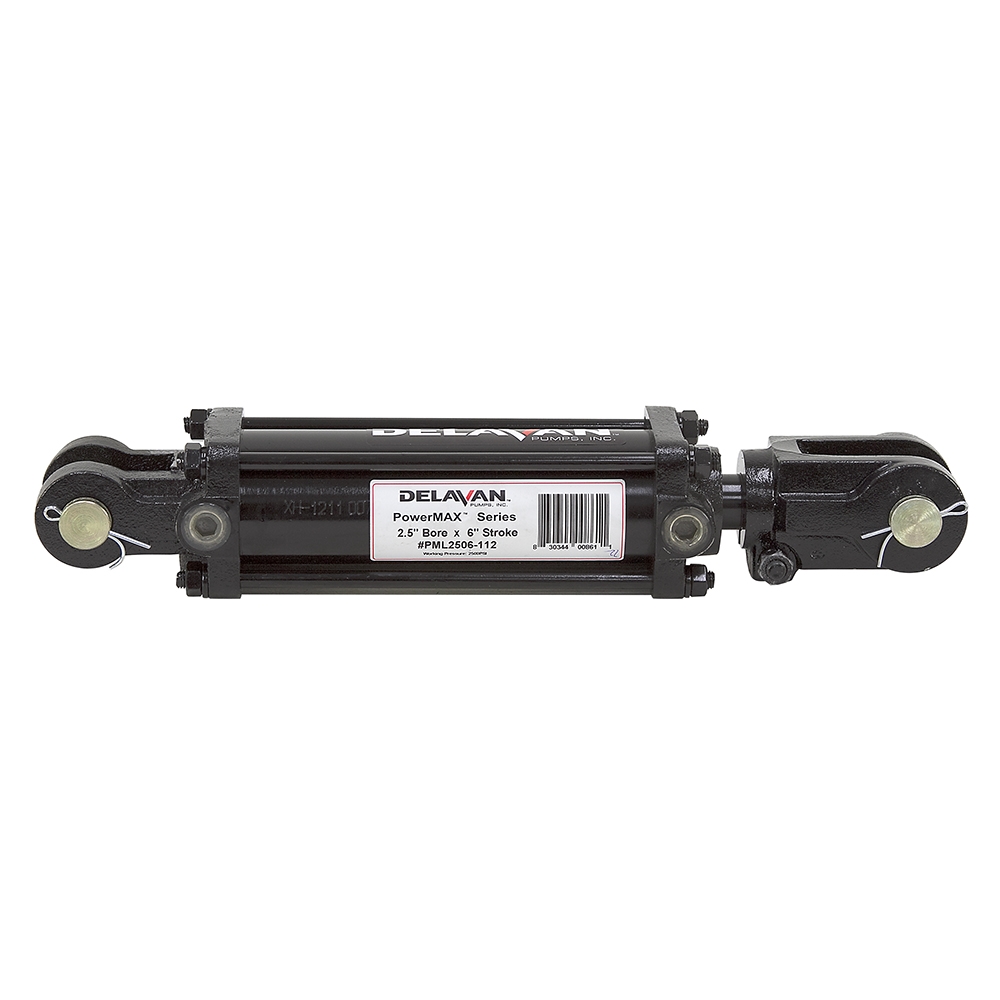

DOUBLE ACTING TIE-ROD HYDRAULIC CYLINDER
New, DELAVAN tie-rod hydraulic cylinder.  Black powder coated paint. Dual port configuration in base end.

SPECIFICATIONS
  • Model #  PML2506-112
  • Bore x Stroke 2.5" x 6"
  • Pressure 2500 PSI
  • Rod Diam. 1.12"
  • Ports 3/8" NPT
  • Retracted Length 16.25"
  • Shpg. 25 lbs.

END MOUNTINGS
  • Rod End Clevis
  • Inside Width 1.13"
  • Outside Width 2.625"
  • Throat Depth 2"
  • Pin Diam. 1"

  • Base End Clevis
  • Inside Width 1.13"
  • Outside Width 2.625"
  • Throat Depth 1.625"
  • Pin Diam. 1"
Warranty
90 Day Surplus Center WarrantyView Warranty
Warranty Information

Products we regularly stock that are purchased directly from the manufacturer are covered by that manufacturers warranty.


We warrant all other products, only to the original purchaser, to be free from defects in materials and workmanship for a period of 90 days from date of shipment.


Because we have no assurance of the purposes for which any of the items herein will or may be used, no warranty is given as to the fitness of the item for any particular purpose. You have the responsibility for determining the suitability of items herein for your particular use. We shall not be liable for incidental or consequential damages.


NOTE! Warranties do not cover bent hydraulic cylinder shafts.


We shall, at our option, repair or replace any items deemed by us to be defective under this warranty. Items returned by the purchaser for warranty adjustment must be handled as stated in our return policy. Proof of, and date of purchase will be required.


Remedies under this warranty shall be limited to the original purchase price of the claimed defective item. (Some states do not allow limitations on implied warranties, incidental or consequential damages, thus, some of the limitations or exclusions referred to above may not apply to you.)


In no event shall we be liable for any damages, or warrant any of our products which are made defective as a result of damage in shipment, user's abuse, neglect or improper operation.



Ask A Question
Submit a question for this product

Showing Questions of 1

the stated retracted length of 16 1/4", is that overall or pin center to center?

A: Retracted length as we use the term is always defined as center pin to center pin.
