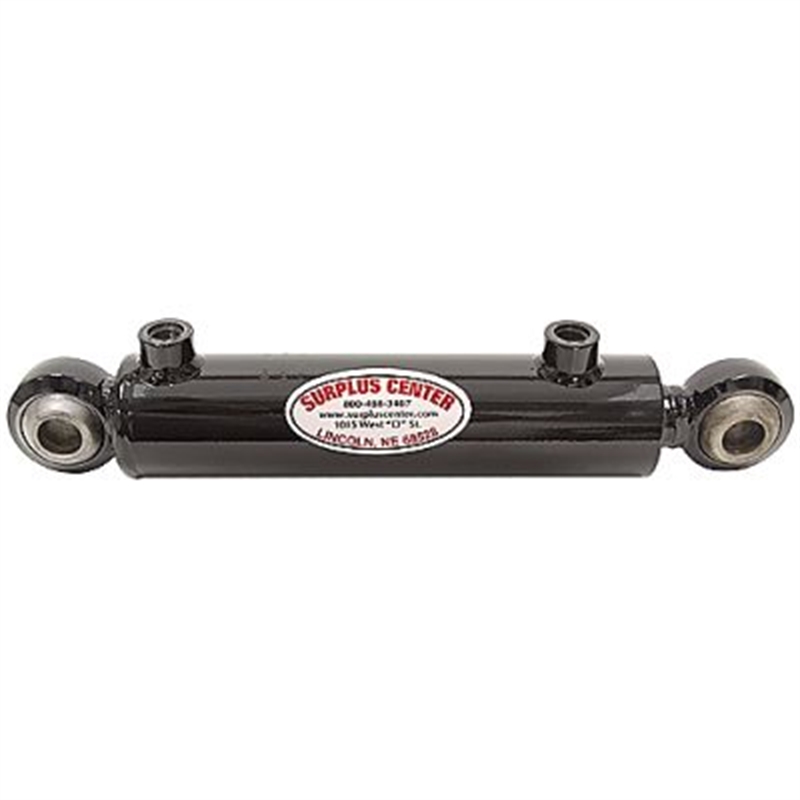

2x10x1.25 DA Hydraulic Cylinder Swivel Eyes

Item Number: 9-7259-10

Price: $142.70
TOP
Back to top

2x10x1.25 DA Hydraulic Cylinder Swivel Eyes

2x10x1.25 DA Hydraulic Cylinder Swivel Eyes

item number: 9-7259-10 PRICE: $142.70 Out of Stock - No Longer Available
Calculate Shipping for Item 9-7259-10
2x10x1.25 DA Hydraulic Cylinder Swivel Eyes
Item Number: 9-7259-10
Price: $142.70
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
SWIVEL BALL END CYLINDER
Brand new, welded cylinder with wire-lock gland retainer. Swivel ball joints at both ends allow for angular motion.

SPECIFICATIONS
  • Double acting
  • Bore x stroke 2" x 10"
  • PSI max. 3,000
  • Rod dia. 1-1/4"


  • Ports SAE 8
  • Retracted length 17-1/2"
  • Shpg. 17 lbs.
END MOUNTINGS
  • Rod end swivel-ball
  • Ball width 1.75"
  • Ball O.D. 2.75"
  • Pin hole 1.00"


  • Base end swivel-ball
  • Ball width 1.75"
  • Ball O.D. 2.75"
  • Pin hole 1.00"
More Specs

MORE INFO

Click to view...

Instructions
Click on boxes below for more information about this product.
Dimensional DiagramMore Specs
Ask A Question

Showing Questions of 3

If the base swivel does not have enough clearance could the rod end be attached to the tractor instead? this is for a top link.

A: It's possible.

Is this suitable for use as a top link on a 3point hitch

A: Customers have found that there frequently isn't enough clearance on the base swivel eye to allow for necessary travel without fouling on the base of the cylinder and causing damage. If this is taken into account and full travel is not impeded it could.

when will this be available again?

A: We have a shipment due 7/21.
