3.25x18.25x1.5 DA Hydraulic Cylinder

Item Number: 9-11769

Price: $49.95
TOP
Back to top

3.25x18.25x1.5 DA Hydraulic Cylinder

  • 3.25x18.25x1.5 DA Hydraulic Cylinder
  • 3.25x18.25x1.5 DA Hydraulic Cylinder - Alternate 1
  • 3.25x18.25x1.5 DA Hydraulic Cylinder - Alternate 2
  • 3.25x18.25x1.5 DA Hydraulic Cylinder - Alternate 3

3.25x18.25x1.5 DA Hydraulic Cylinder

item number: 9-11769 PRICE: $49.95 Out of Stock - No Longer Available
Calculate Shipping for Item 9-11769
3.25x18.25x1.5 DA Hydraulic Cylinder
Item Number: 9-11769
Price: $49.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION

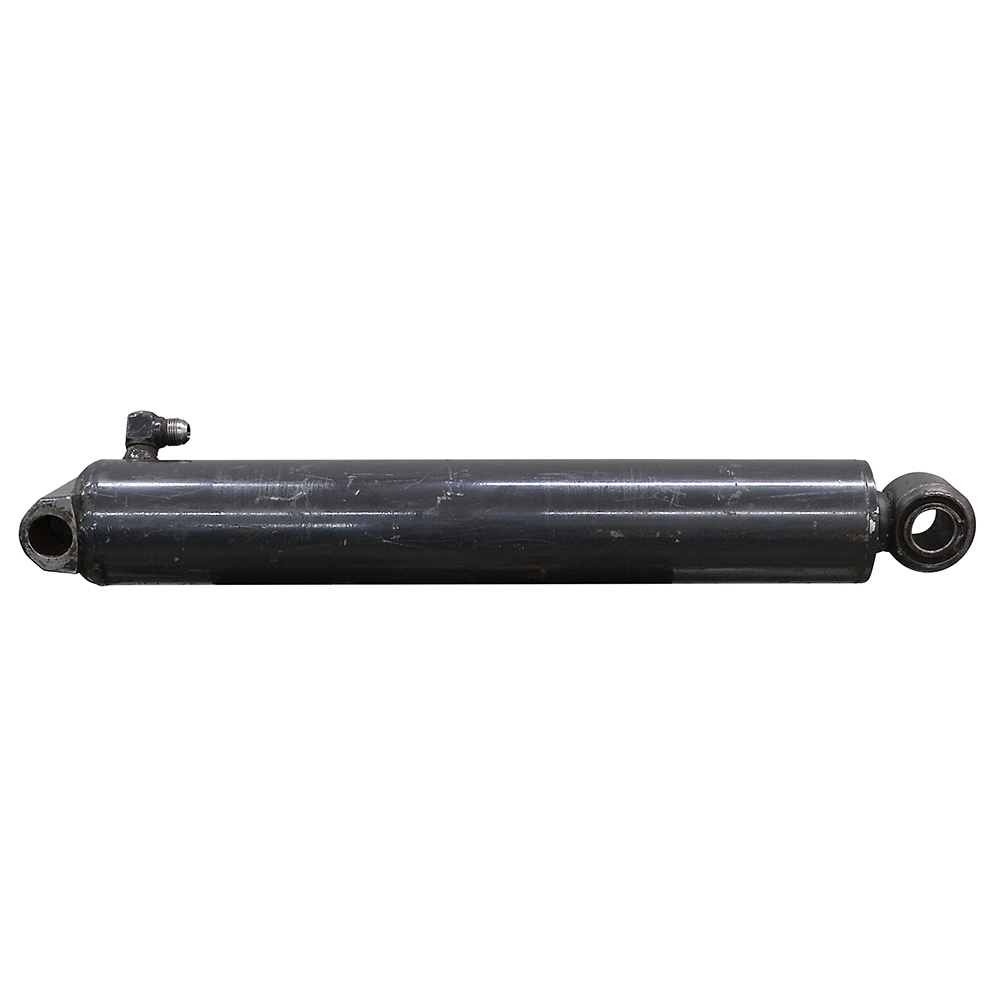

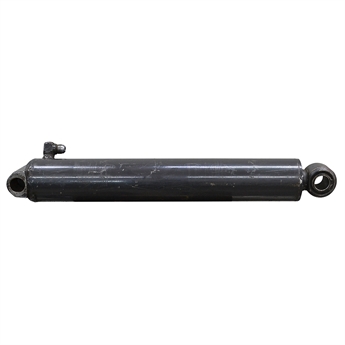

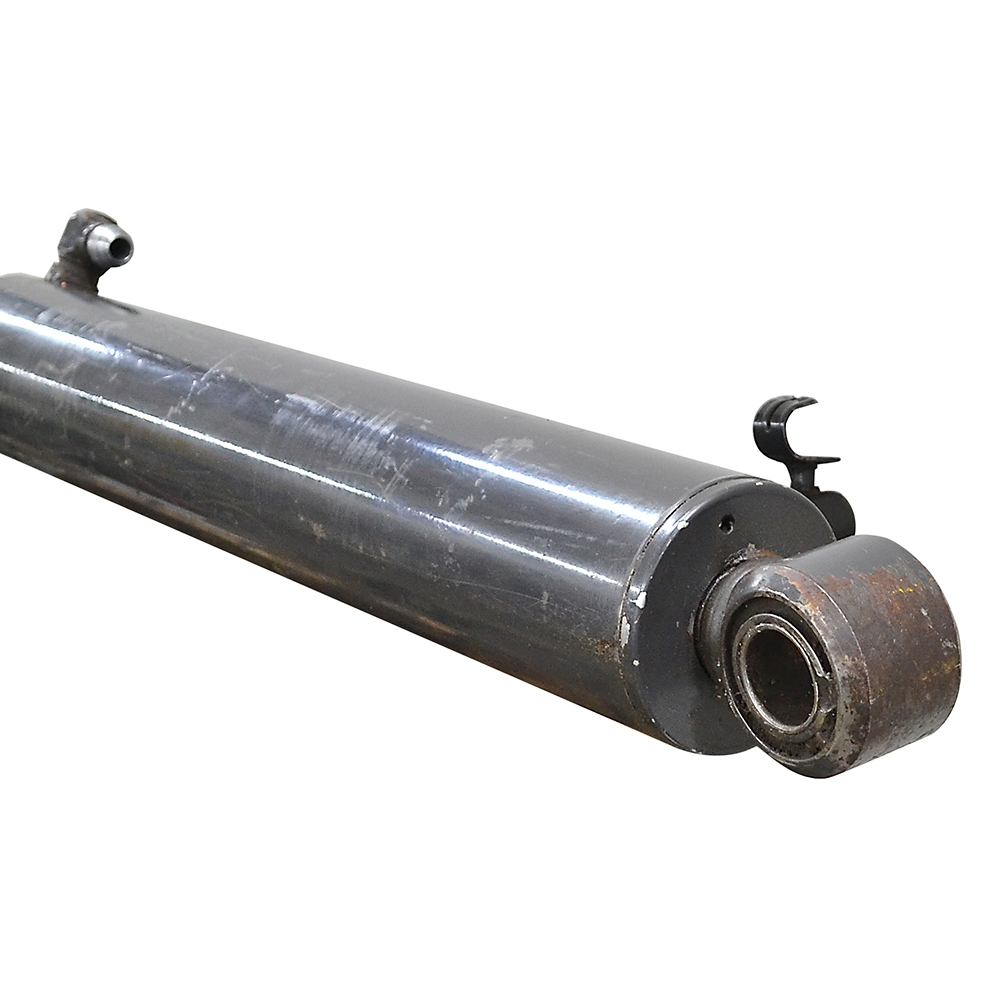

3.25" x 18.25" x 1.5" DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Piston seals are bad and so is the rod seal.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.25" x 18.25"
  • Barrel Thickness 0.25"
  • Gland Retainer Threaded in
  • Pressure 3000 PSI
  • Rod Dia. 1.5"
  • Ports JIC 10
  • Retracted Length 25.75"
  • Gland Face to Rod Pin Center 1.75"
  • Shpg. 45 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 2.07"
  • Pin-Center-To-Tang-End 1.37"
  • Pin Hole 1-1/4"
  • Base End Tang
  • Width 4"
  • Pin-Center-To-Tang-End 0.94"
  • Pin Hole 1-1/4"
