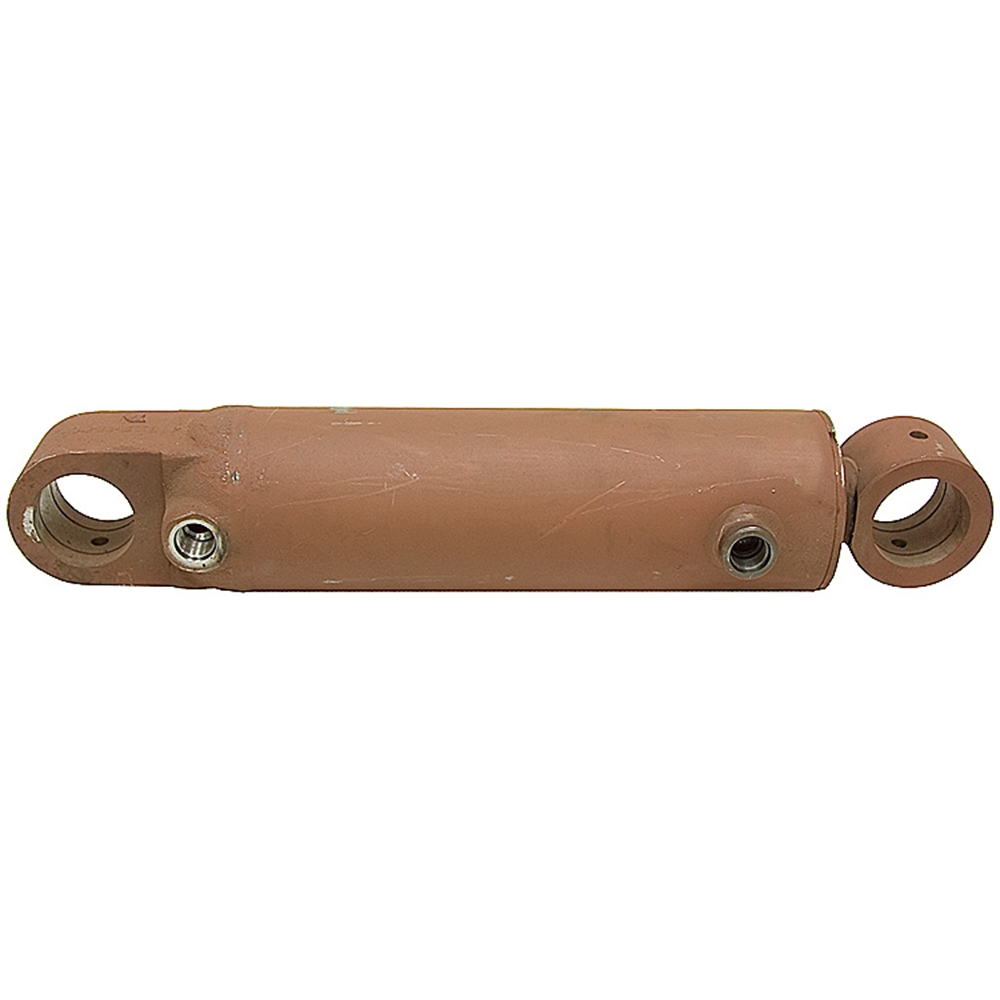

3.25x8x1.5 DA Hydraulic Cylinder

Item Number: 9-2499

Price: $95.00
TOP
Back to top

3.25x8x1.5 DA Hydraulic Cylinder

3.25x8x1.5 DA Hydraulic Cylinder

item number: 9-2499 PRICE: $95.00 Out of Stock - No Longer Available
Calculate Shipping for Item 9-2499
3.25x8x1.5 DA Hydraulic Cylinder
Item Number: 9-2499
Price: $95.00
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
3.25X8X1.5 DA HYD CYL
New, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3-1/4" x 8"
  • Pressure 2500 PSI max.
  • Rod Dia. 1-1/2"
  • Ports SAE 8
  • Retracted Length 16"
  • Shpg. 28 lbs.
END MOUNTINGS

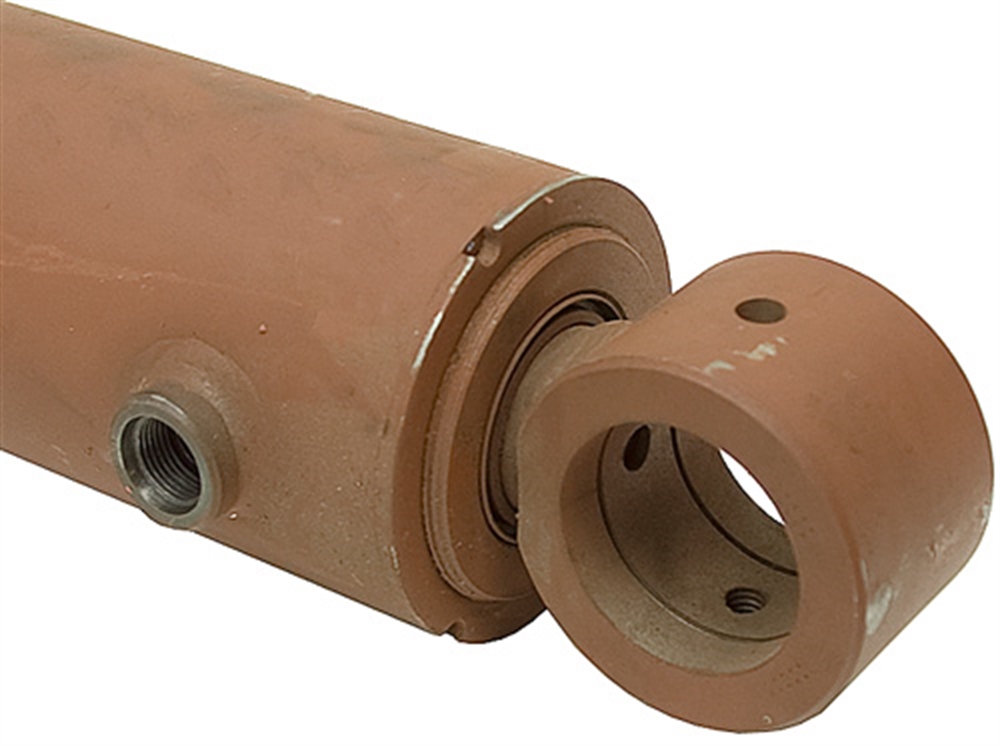

  • Rod End Crosstube
  • Crosstube Width 2"
  • Pin Hole 2"

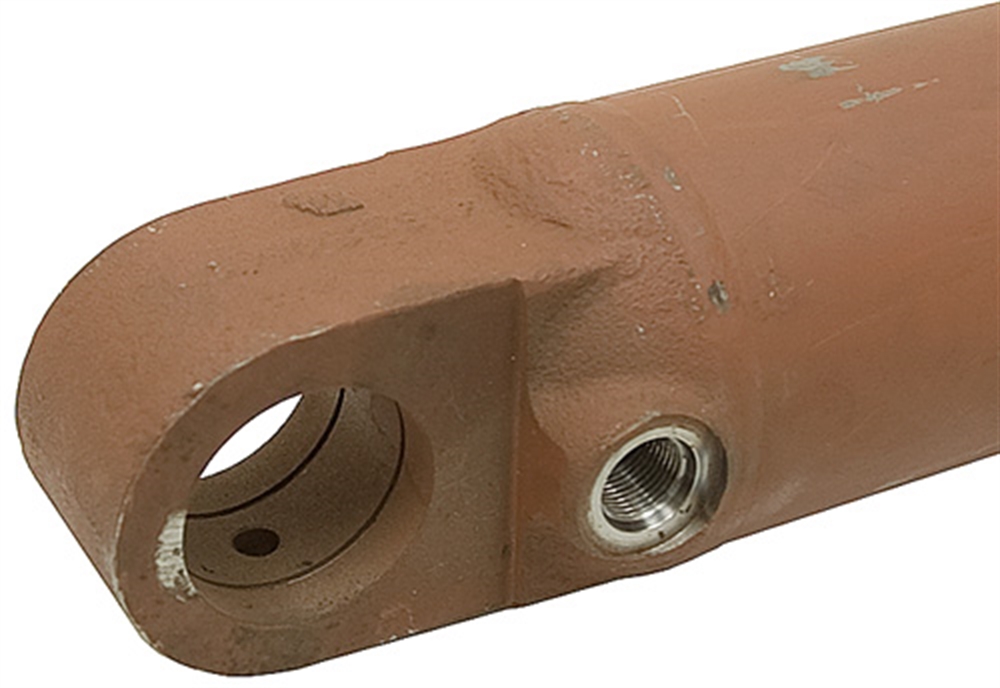

  • Base End Tang
  • Tang Width 2"
  • Pin Hole 2"
Ask A Question

Showing Questions of 1

can this be made with 1.75 pin diameter?

A: No it cannot. You would have to get a bushing made.
