Description
DESCRIPTION
3.5" x 24" x 1.5" HYD CYL

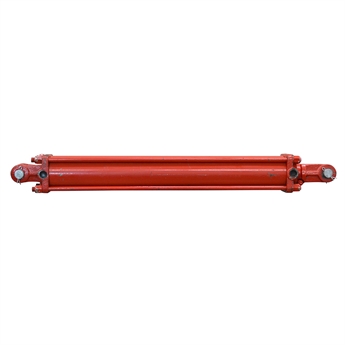

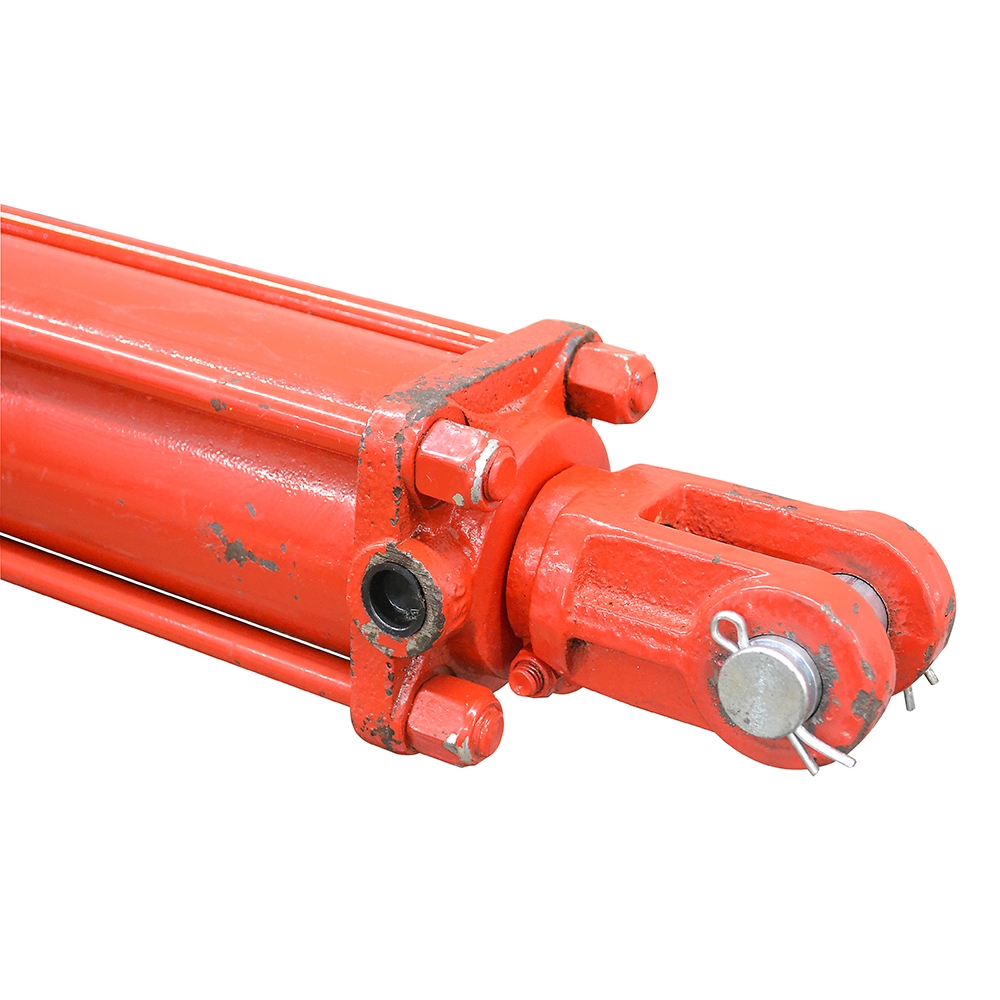

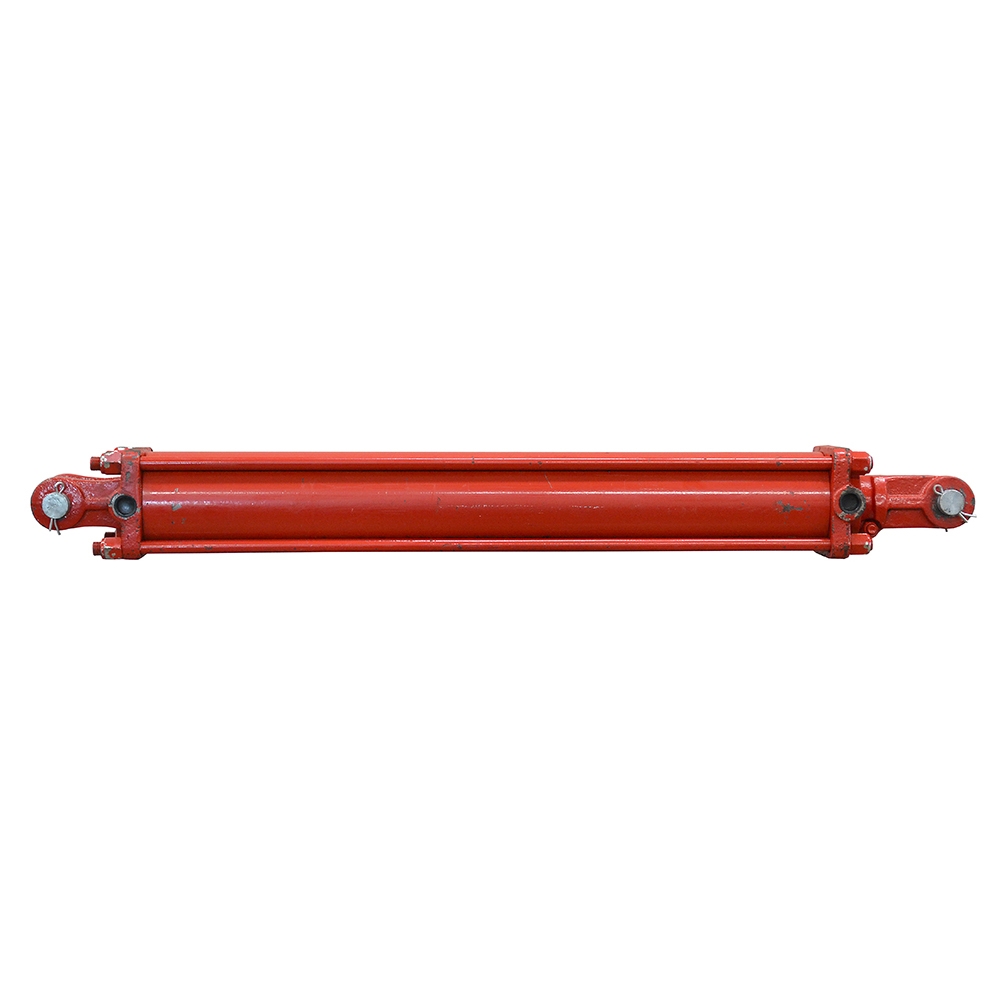

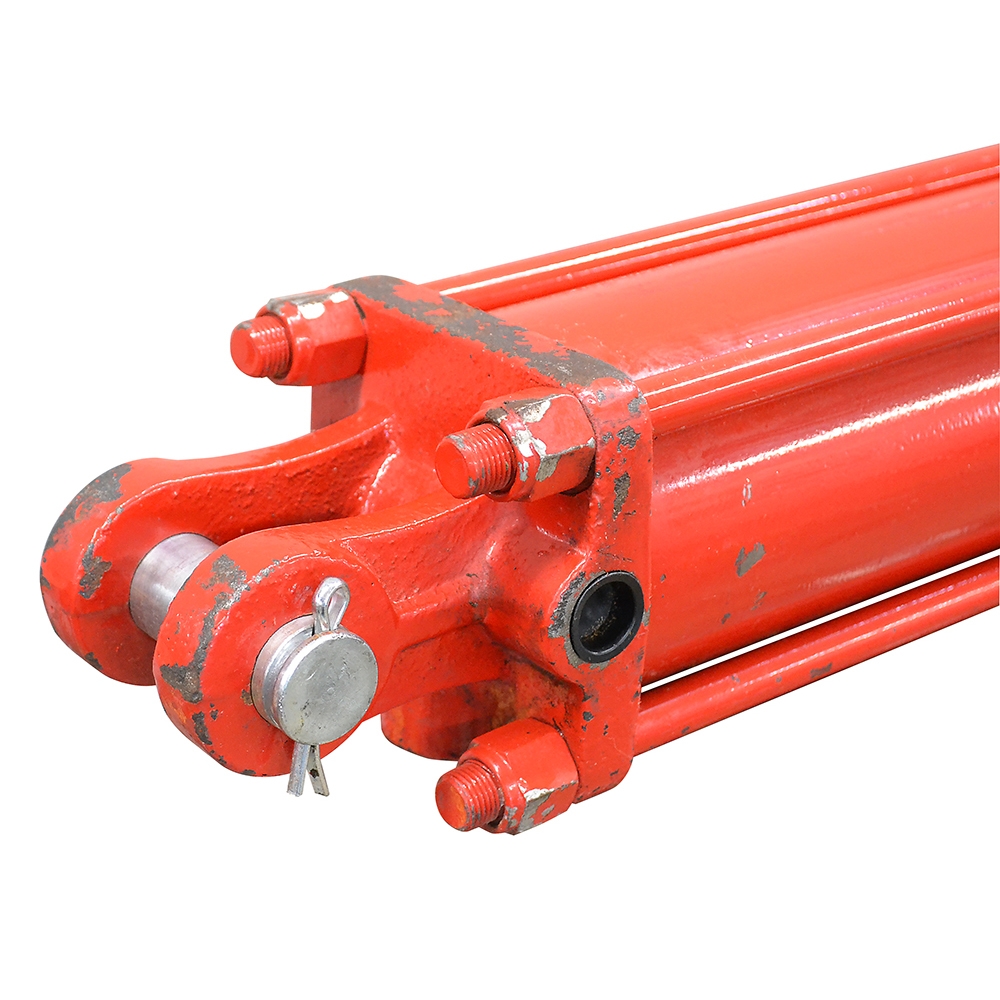

Unused old inventory. GRIZZLY 058053, tie-rod, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.5" x 24"
  • Gland Retainer 4-Hole
  • Pressure 2500 PSI max.
  • Rod Dia. 1.5"
  • Rod Thickness 1.5"
  • Ports 1/2" NPT
  • Retracted Length 34.25"
  • Gland Face to Rod Pin Center 3.5"
  • Shpg. 56 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 2.75"
  • Inside Width 1.125"
  • Throat Depth 3"
  • Pin Hole 1"
  • Base End Clevis
  • Outside Width 2.688"
  • Inside Width 1.185"
  • Throat Depth 3"
  • Pin Hole 1"
