Description

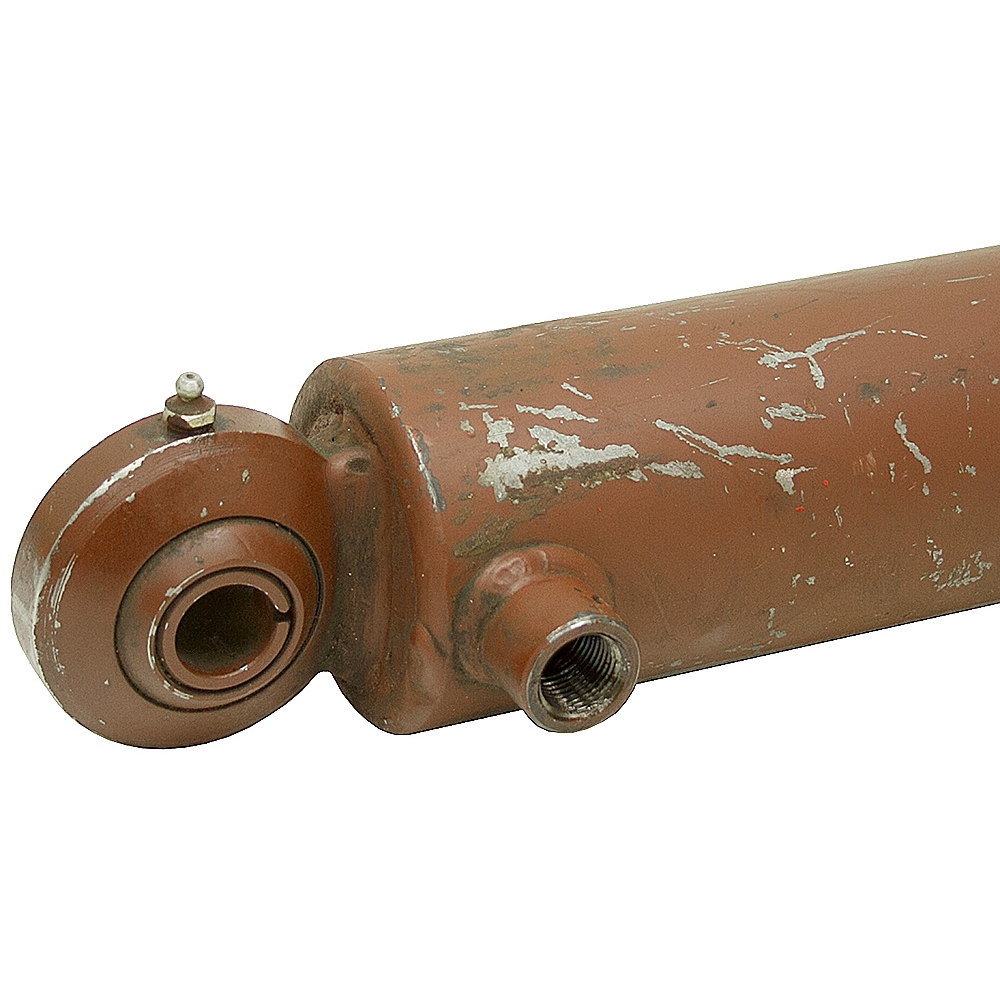

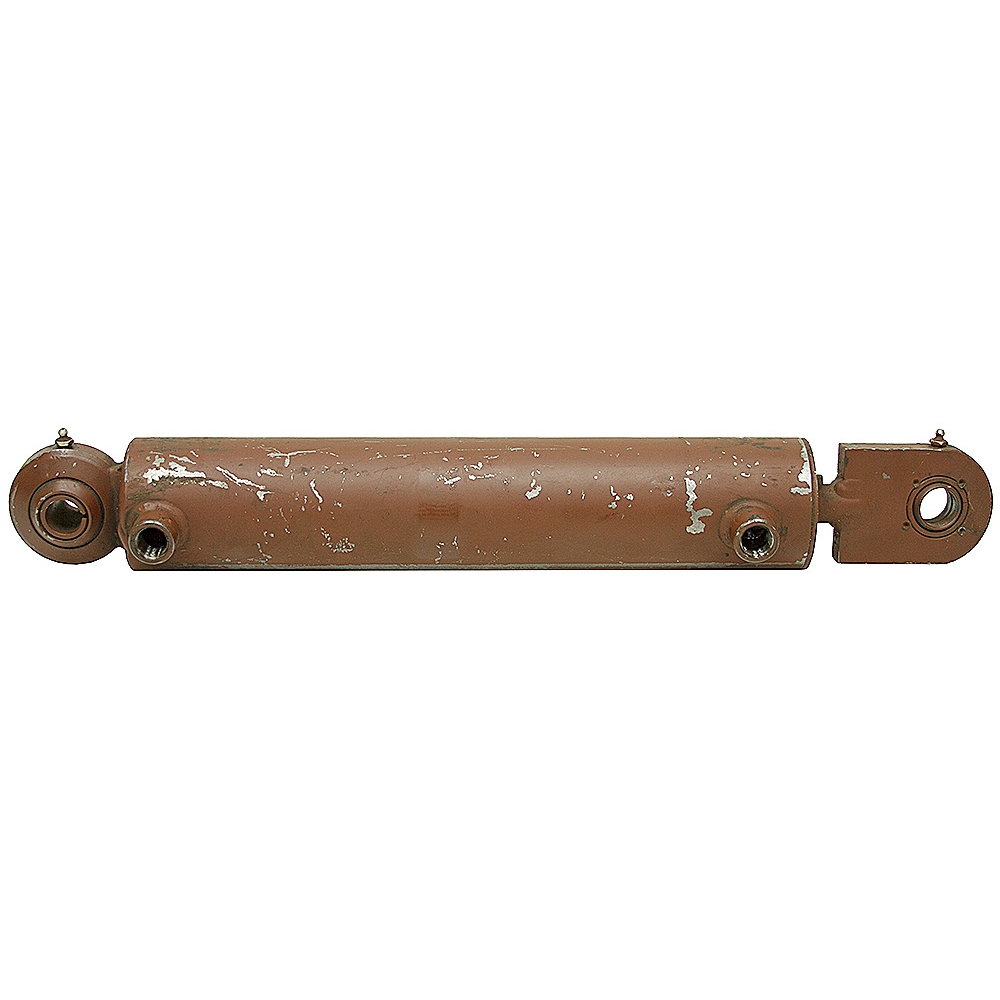

3" x 11.75" x 1" DA HYDRAULIC CYLINDER
Used, old inventory. Welded cylinder with internal snap ring gland retainer.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3" x 11-3/4"
  • Barrel Thickness 3/16"
  • Pressure 2000 PSI max.
  • Rod Dia. 1"
  • Ports 1/2" NPT
  • Retracted Length 22"
  • Shpg. 22 lbs.
END MOUNTINGS
  • Rod End Tang w/ swivel eye
  • Max Thickness 7/8"
  • Pin Center to Tang End 1-1/2"
  • Pin Hole 1"
  • Base End Tang w/ swivel eye
  • Max Thickness 1-3/4"
  • Pin Center to Tang End 1-1/2"
  • Pin Hole 7/8"
