Description

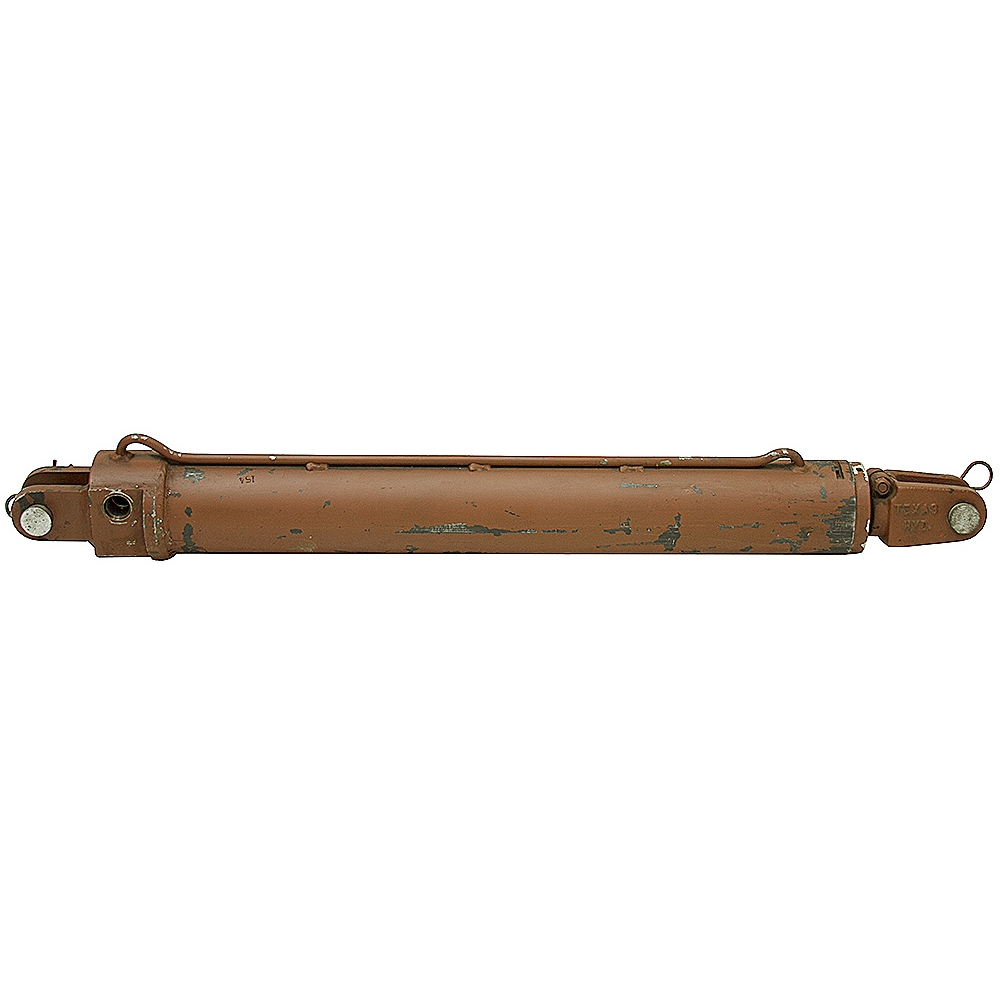

3" x 20" x 1.5" DA HYDRAULIC CYLINDER
Used, old inventory. Welded cylinder with internal wire lock gland cap. Texas Hydraulics.  Both ports located on base end.  Leaking seals, sold As-Is.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3" x 20"
  • Barrel Thickness 1/4"
  • Pressure 3000 PSI max.
  • Rod Dia. 1-1/2"
  • Ports SAE 10
  • Retracted Length 33-5/8"
  • Shpg. 47 lbs.
END MOUNTINGS

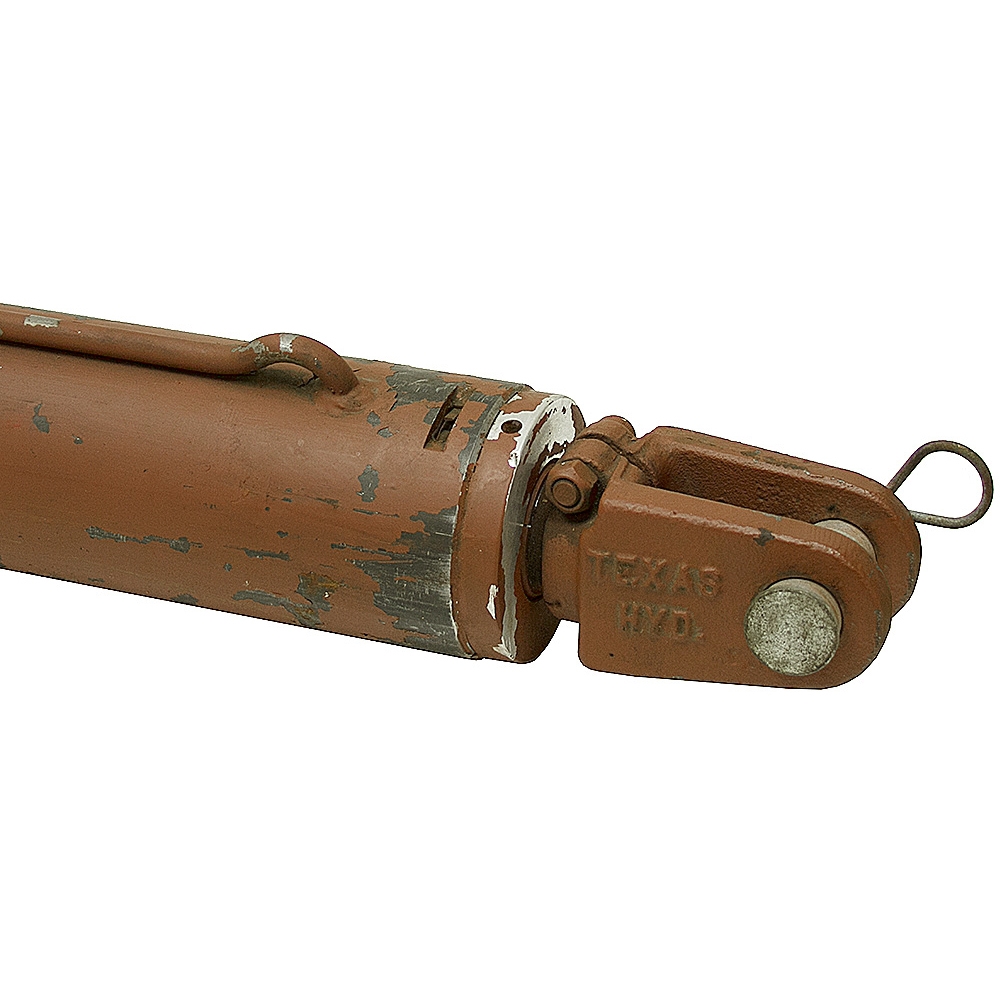

  • Rod End Thread-on Clevis
  • Outside Width 2-1/8"
  • Inside Width 1-1/16"
  • Throat Depth 2"
  • Pin Hole 1"

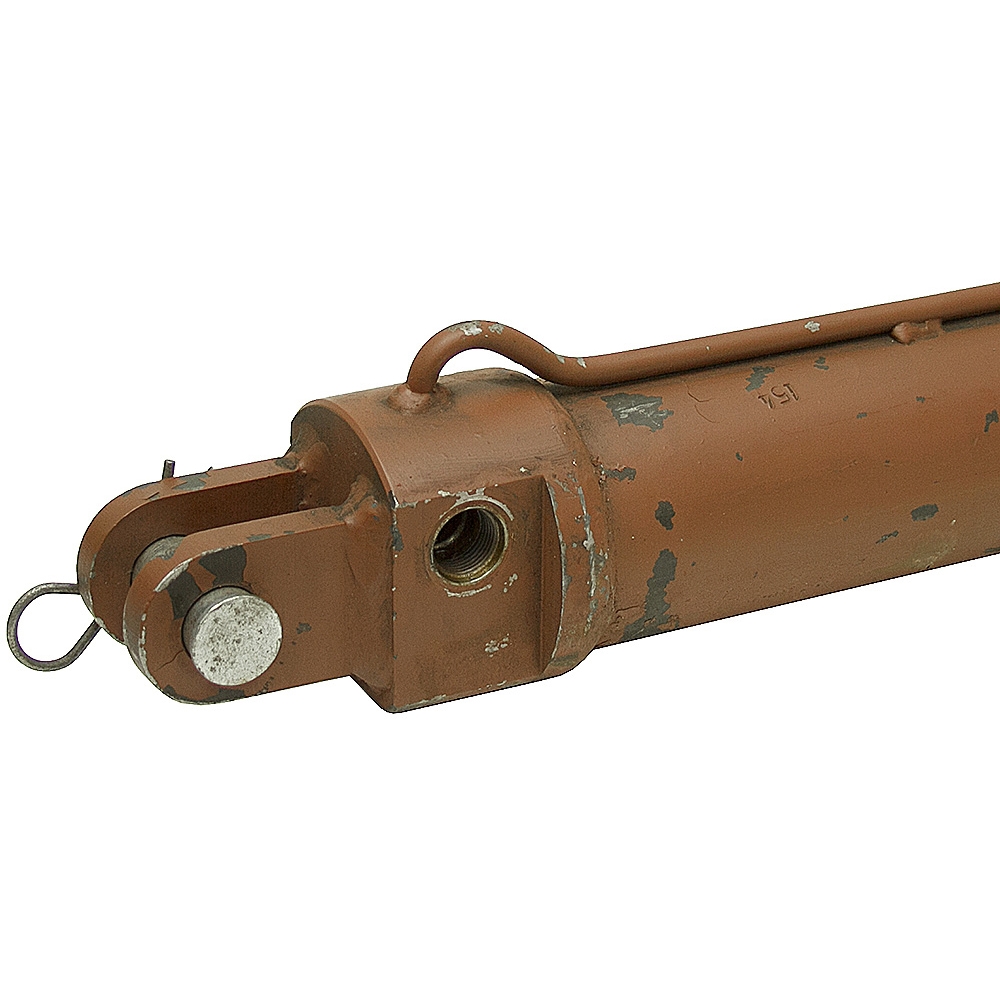

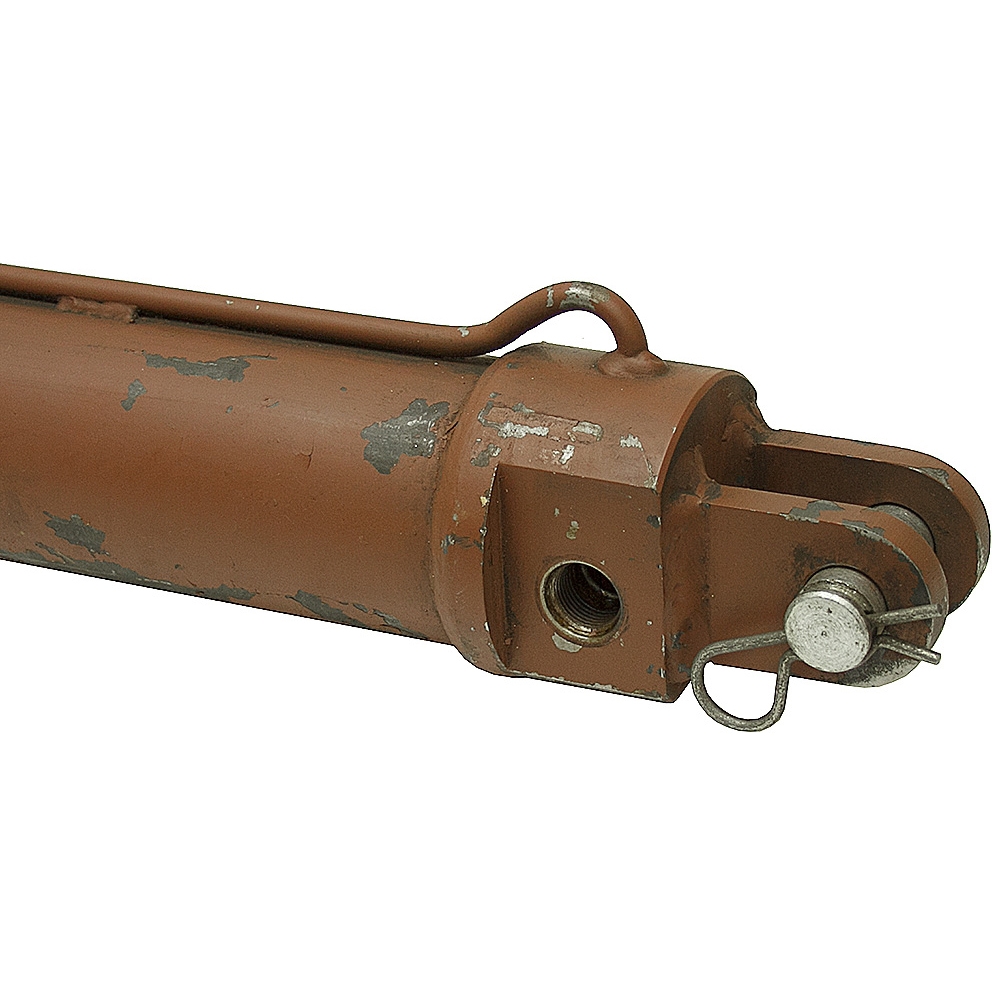

  • Base End Clevis
  • Outside Width 2-1/8"
  • Inside Width 1-1/16"
  • Throat Depth 2"
  • Pin Hole 1"
