3x24x1.5 Double Acting Hydraulic Cylinder Maxim 400531

3" x 24" x 1.5" DOUBLE ACTING HYDRAULIC CYLINDER

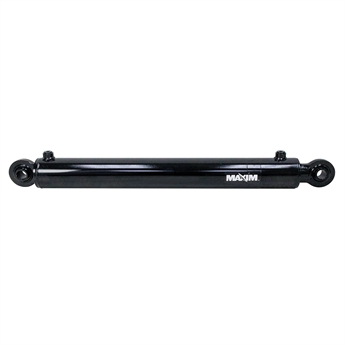

Brand new Maxim 400531 double acting hydraulic cylinder with swivel eyes. Great option for use on compact equipment. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance, exceeding the highest standards.

SPECIFICATIONS
Double Acting Bore x Stroke 3" x 24" Gland Retainer Threaded in Gland Pressure 3000 PSI max. Rod Dia. 1.5"	Ports SAE 8 Retracted Length 32.25" Gland Face to Rod Pin Center 2.5" Shpg. 42 lbs.

END MOUNTINGS
Rod End Swivel Eye Width 0.75" Pin-Center-To-Swivel Eye-End 1.5" Swivel Eye Width 1.75" Pin Hole 1"	Base End Swivel Eye Width 0.75" Pin-Center-To-Swivel Eye-End 1.5" Swivel Eye Width 1.75" Pin Hole 1"
