4x9.5x2 DA Hydraulic Cylinder

Item Number: 9-9220

Price: $199.95
TOP
Back to top

4x9.5x2 DA Hydraulic Cylinder

4x9.5x2 DA Hydraulic Cylinder

item number: 9-9220 PRICE: $199.95 10 In Stock Surplus Item



Available for curbside pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 9-9220
4x9.5x2 DA Hydraulic Cylinder
Item Number: 9-9220
Price: $199.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 71 of our current catalog
Description

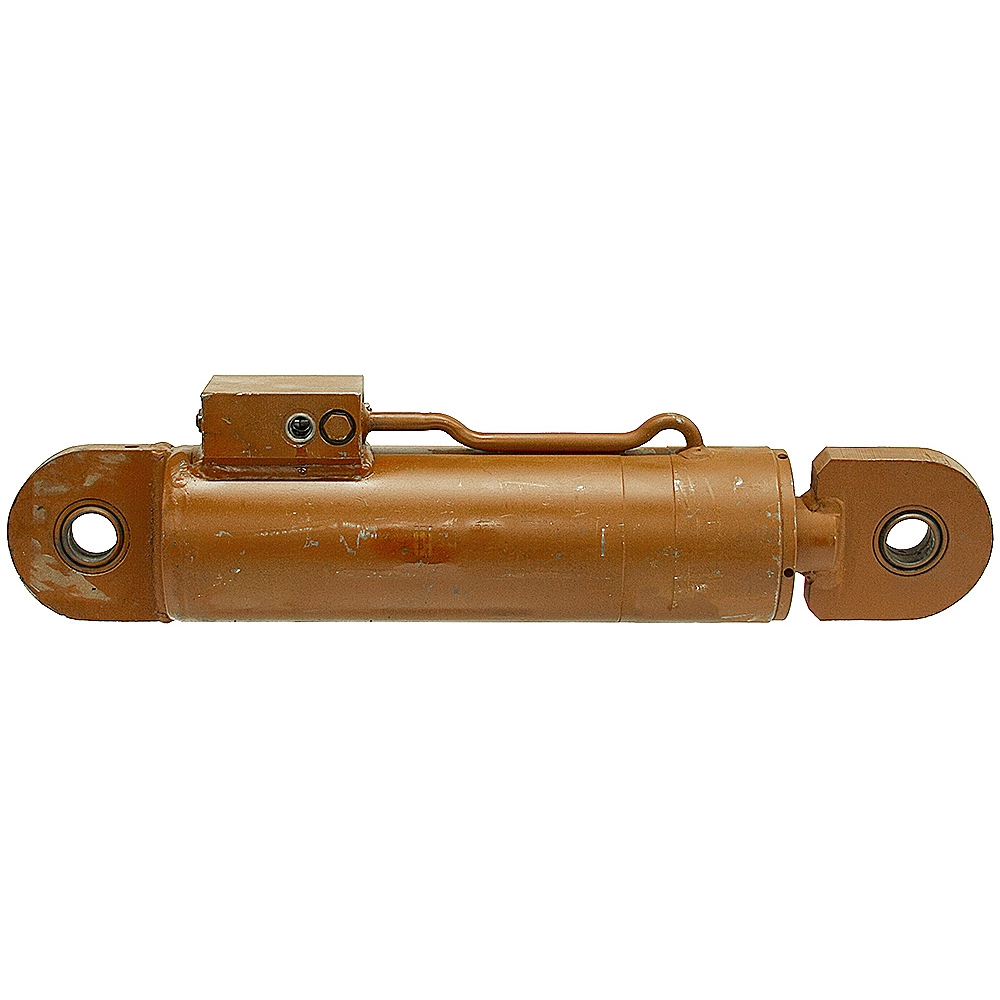

4" x 9.5" x 2" DA HYDRAULIC CYLINDER

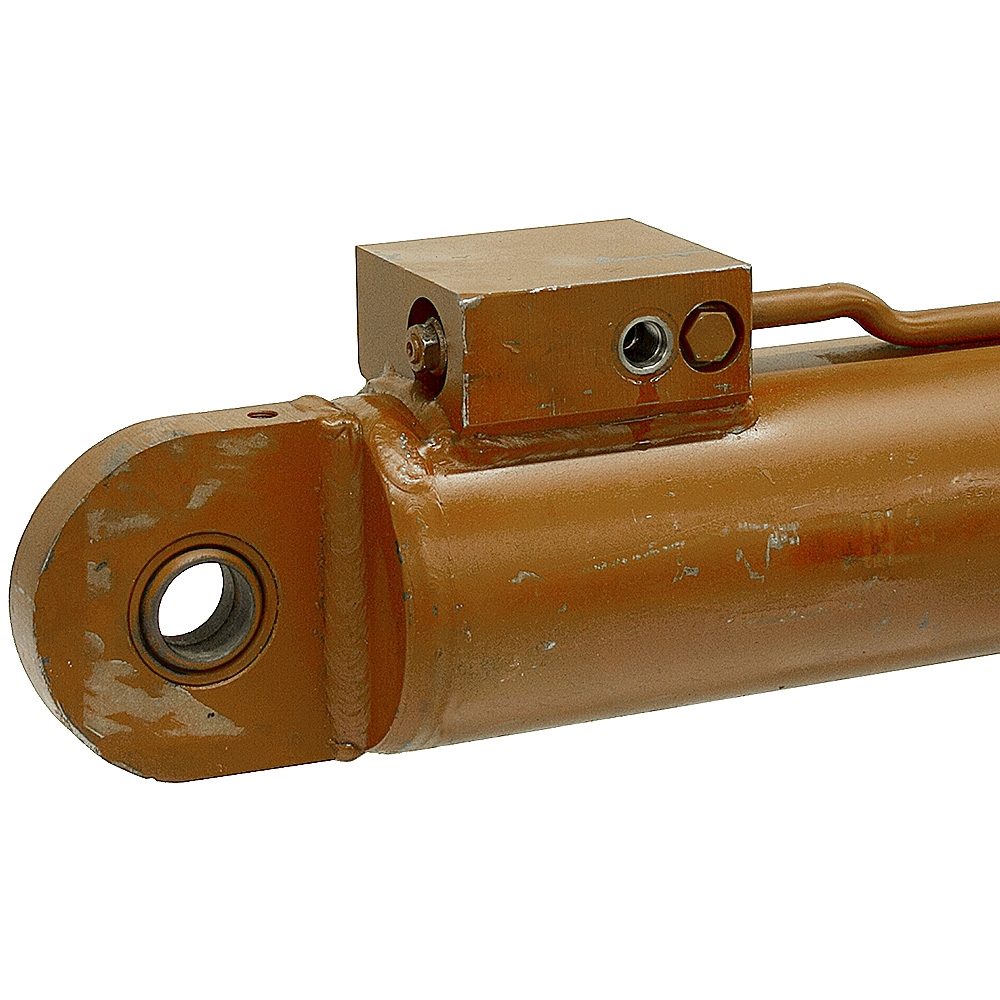

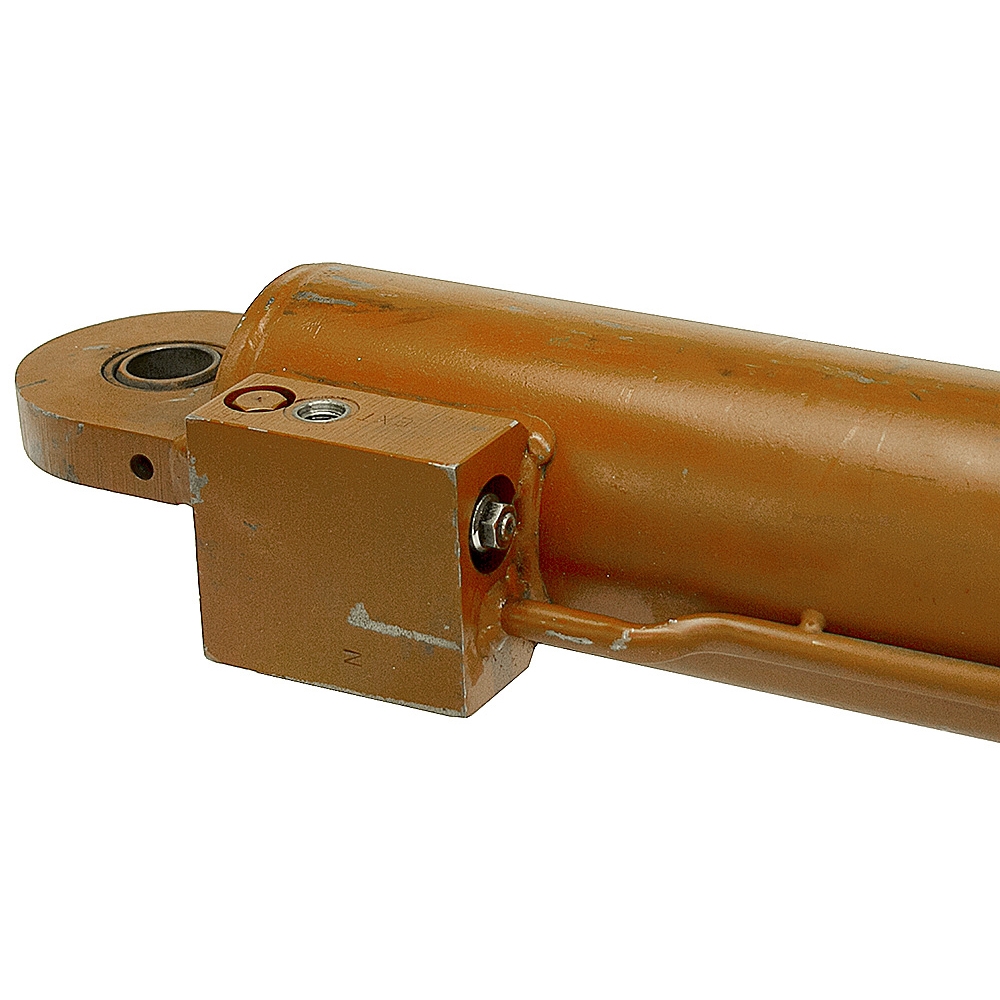

Unused, old inventory. Welded cylinder with thread-in gland cap. Two SUN model CBCG-LJN standard capacity counter-balance valves with 4.5:1 pilot ratio, rated for 15gpm, set to 3900psi, standard screw adjustment.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4" x 9-1/2"
  • Barrel Thickness 5/16"
  • Pressure 3000 PSI max.
  • Rod Dia. 2"
  • Ports SAE 6
  • Retracted Length 21-1/4"
  • Shpg. 64 lbs.
END MOUNTINGS

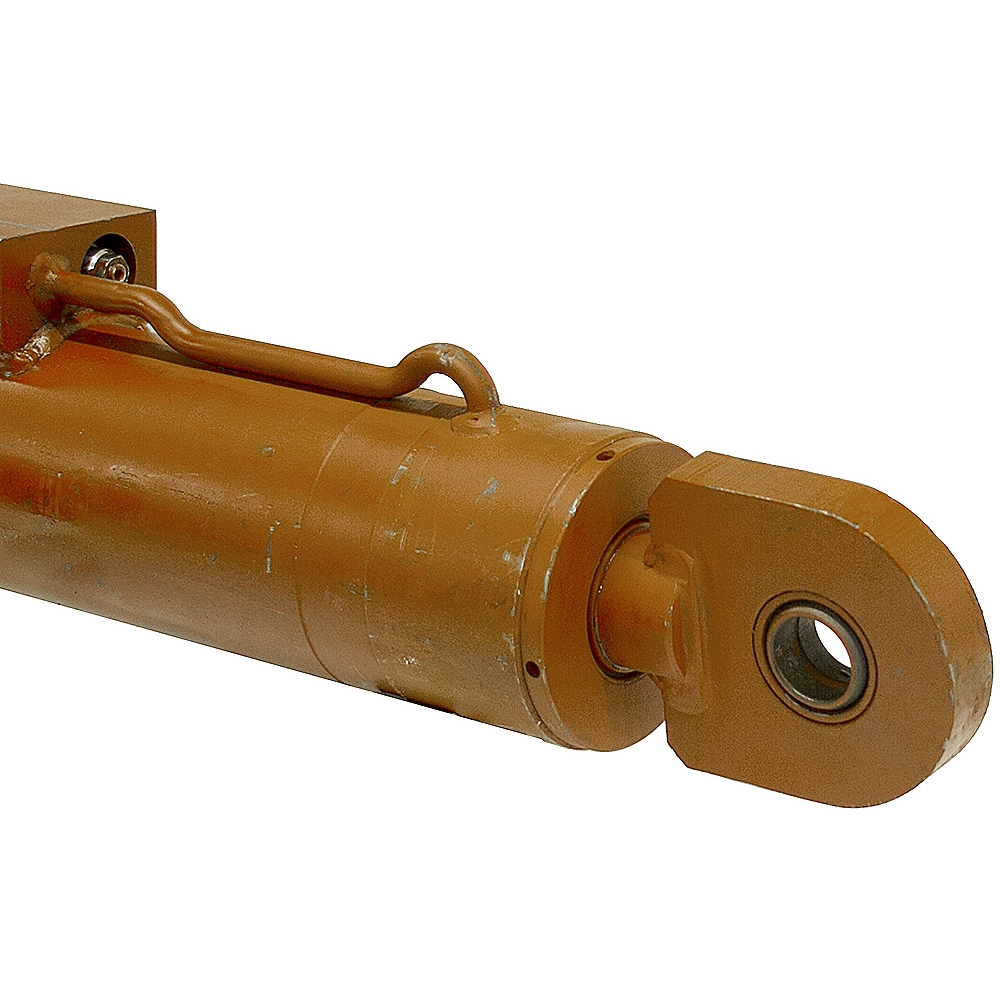

  • Rod End Tang w/ Swivel Eye
  • Max Thickness 1-1/16"
  • Pin Center to Rod End 2-1/4"
  • Pin Hole 1-1/4"
  • Base End Tang w/ Swivel Eye
  • Max Thickness 1-1/16"
  • Pin Center to Base End 2-1/4"
  • Pin Hole 1-1/4"
Warranty
90 Day Surplus Center WarrantyView Warranty
Warranty Information

Products we regularly stock that are purchased directly from the manufacturer are covered by that manufacturers warranty.


We warrant all other products, only to the original purchaser, to be free from defects in materials and workmanship for a period of 90 days from date of shipment.


Because we have no assurance of the purposes for which any of the items herein will or may be used, no warranty is given as to the fitness of the item for any particular purpose. You have the responsibility for determining the suitability of items herein for your particular use. We shall not be liable for incidental or consequential damages.


NOTE! Warranties do not cover bent hydraulic cylinder shafts.


We shall, at our option, repair or replace any items deemed by us to be defective under this warranty. Items returned by the purchaser for warranty adjustment must be handled as stated in our return policy. Proof of, and date of purchase will be required.


Remedies under this warranty shall be limited to the original purchase price of the claimed defective item. (Some states do not allow limitations on implied warranties, incidental or consequential damages, thus, some of the limitations or exclusions referred to above may not apply to you.)


In no event shall we be liable for any damages, or warrant any of our products which are made defective as a result of damage in shipment, user's abuse, neglect or improper operation.



Ask A Question
Submit a question for this product

Showing Questions of 2

Do you have a counter balance valve to hold it from retracting. I.e. Both directions

A: This cylinder has a counterbalance valve on both directions of stroke.

Please explain the function of the counter balancer.

A: A counter balance valve is used to prevent unwanted movement of a cylinder that has a load hanging from the rod in such a fashion that the load force could extend the rod, were the counter balance not used.
