Description

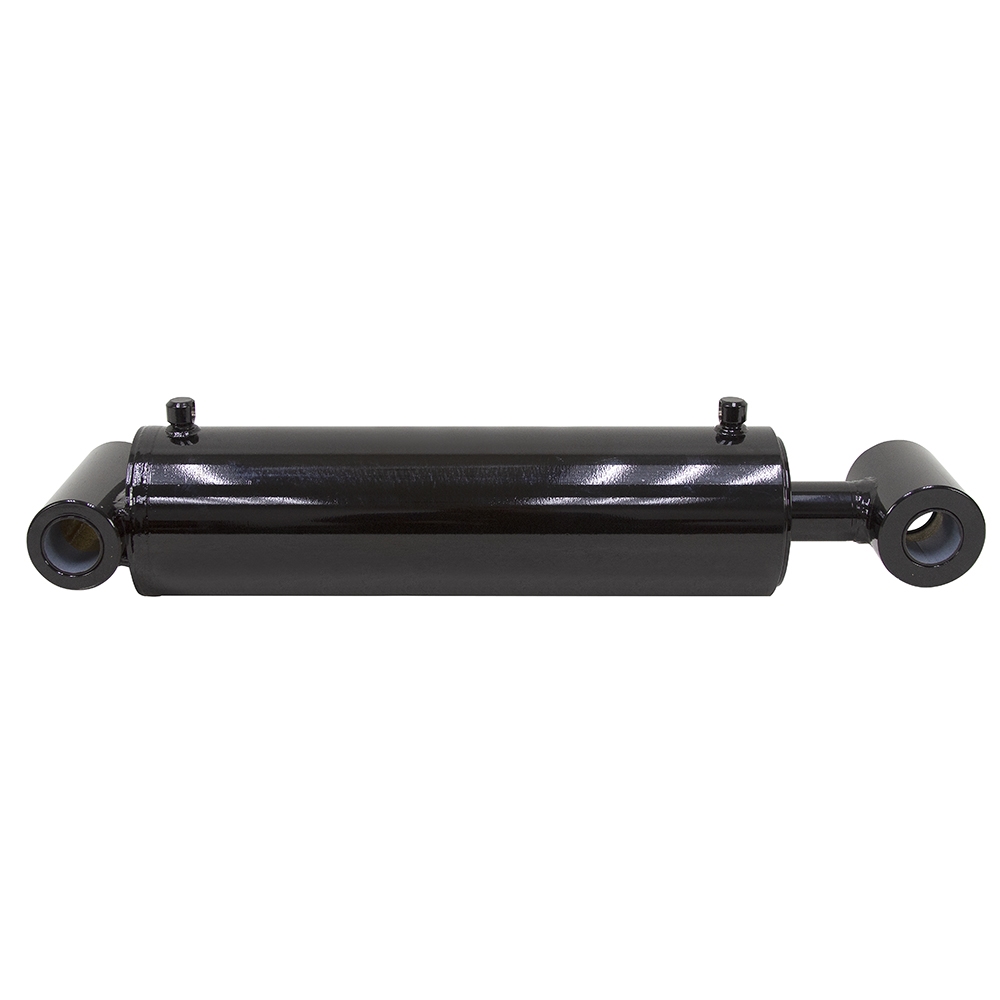

5" x 16" x 2" DA HYD CYL
New. LION double acting hydraulic cylinder. Numbers on cylinder 659703.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5" x 16"
  • Barrel Thickness 0.313"
  • Gland Retainer Wire ring gland retainer
  • Pressure 3000 PSI
  • Rod Dia. 2"
  • Ports SAE 6
  • Retracted Length 27"
  • Gland Face to Rod Pin Center 4.75"
  • Shpg. 92 lbs.
END MOUNTINGS

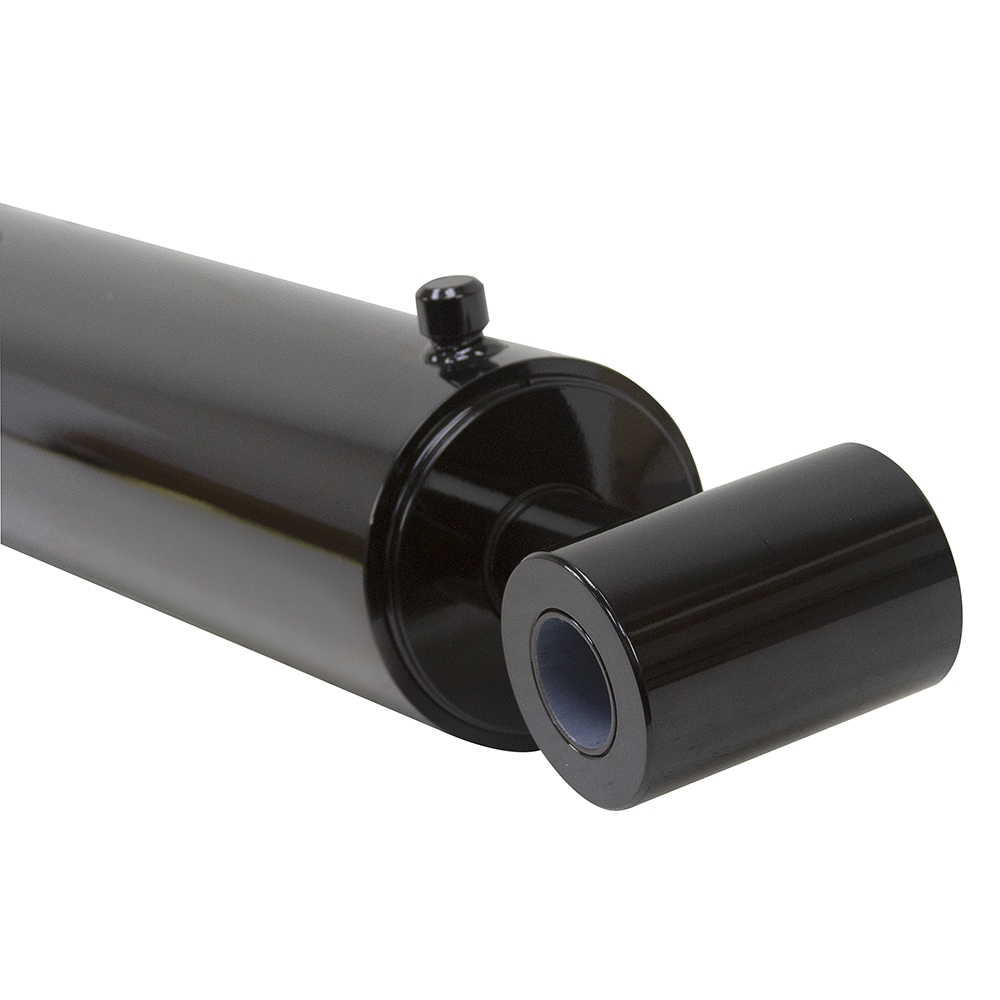

  • Rod End Cross-Tube
  • O.D. 3.5"
  • Width 5"
  • Pin Hole 1-3/4"

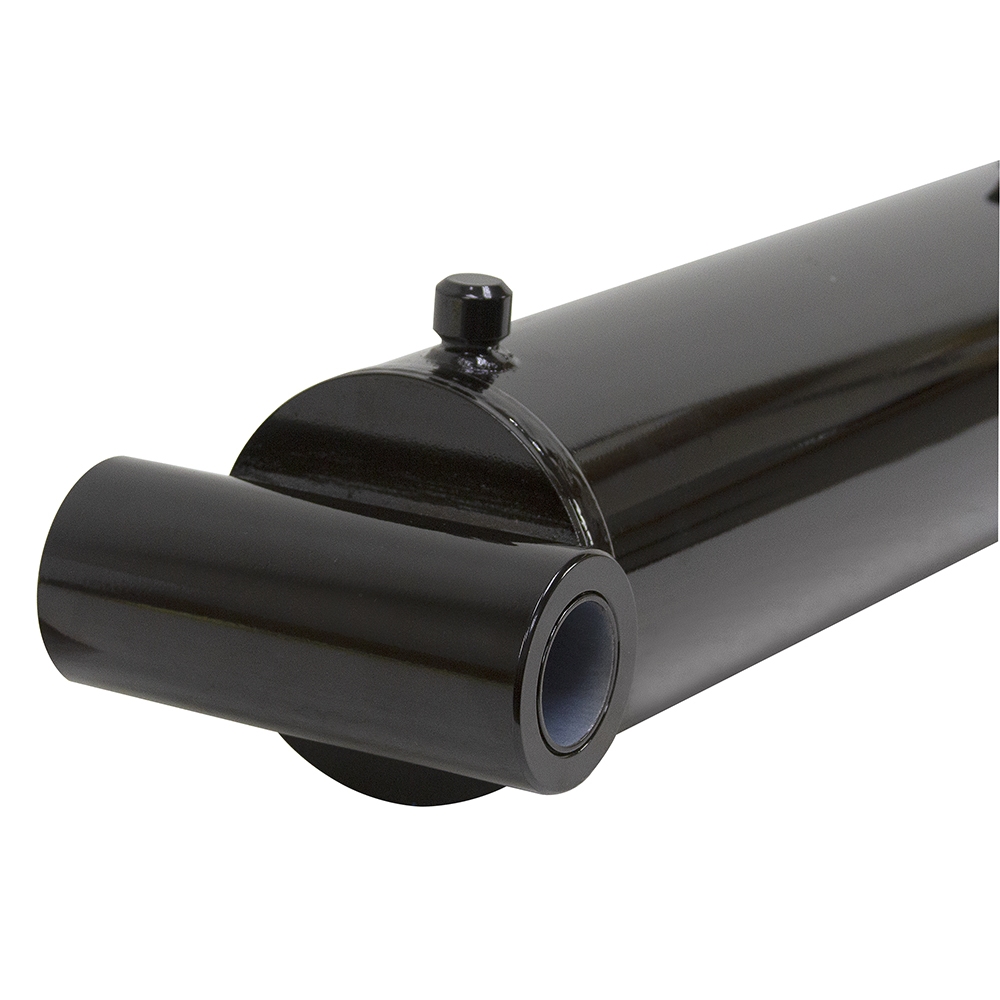

  • Base End Cross-Tube
  • O.D. 3"
  • Width 7"
  • Pin Hole 1-3/4"
