2.36x6x1.125 Double Acting Rephasing Hydraulic Cylinder BAILEY 320-954

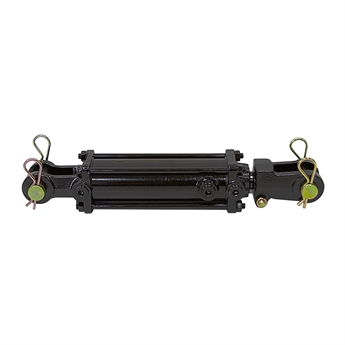

2.36" x 6" x 1.125" REPHASING HYDRAULIC CYLINDER
New. BAILEY 320-954, tie-rod, double acting rephasing hydraulic cylinder. Rephasing cylinders for series applications where multiple cylinders extend and retract equally. Two or more cylinders are plumbed in series, with bore and rod diameters sized so all rods extend or retract in unison. The rephase bypass allows oil to bypass piston on full cylinder extension to fill the next cylinder during initial synchronization or to compensate for internal leakage. Rephasing on extend and retract ports.

SPECIFICATIONS
Double Acting Bore x Stroke 2.36" x 6" Gland Retainer 4-Hole Pressure 2500 PSI max. Rod Dia. 1.125"	Ports SAE 8 Retracted Length 16.25" Gland Face to Rod Pin Center 3.5" Shpg. 21 lbs.

END MOUNTINGS
Rod End Clevis Outside Width 2.455" Inside Width 1.21" Throat Depth 2.125" Pin Hole 1"	Base End Clevis Outside Width 2.465" Inside Width 1.283" Throat Depth 2.125" Pin Hole 1"
