Description

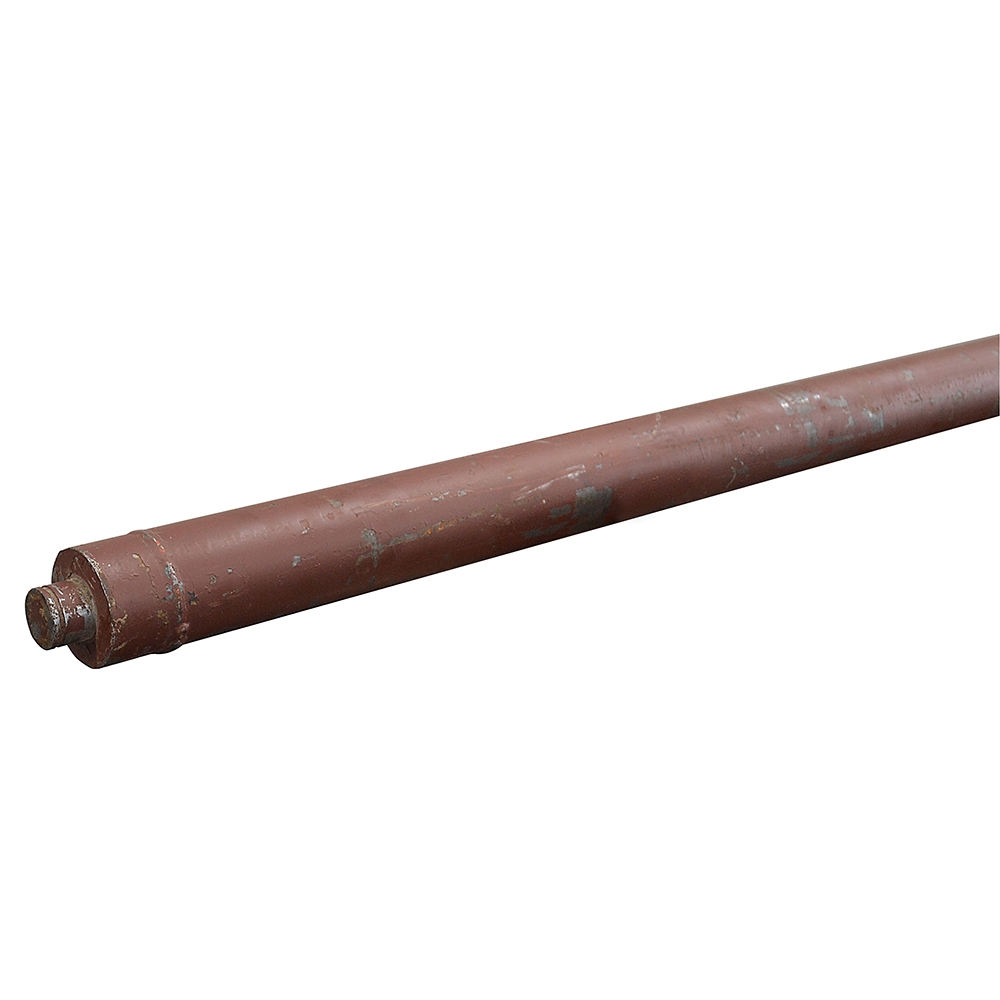

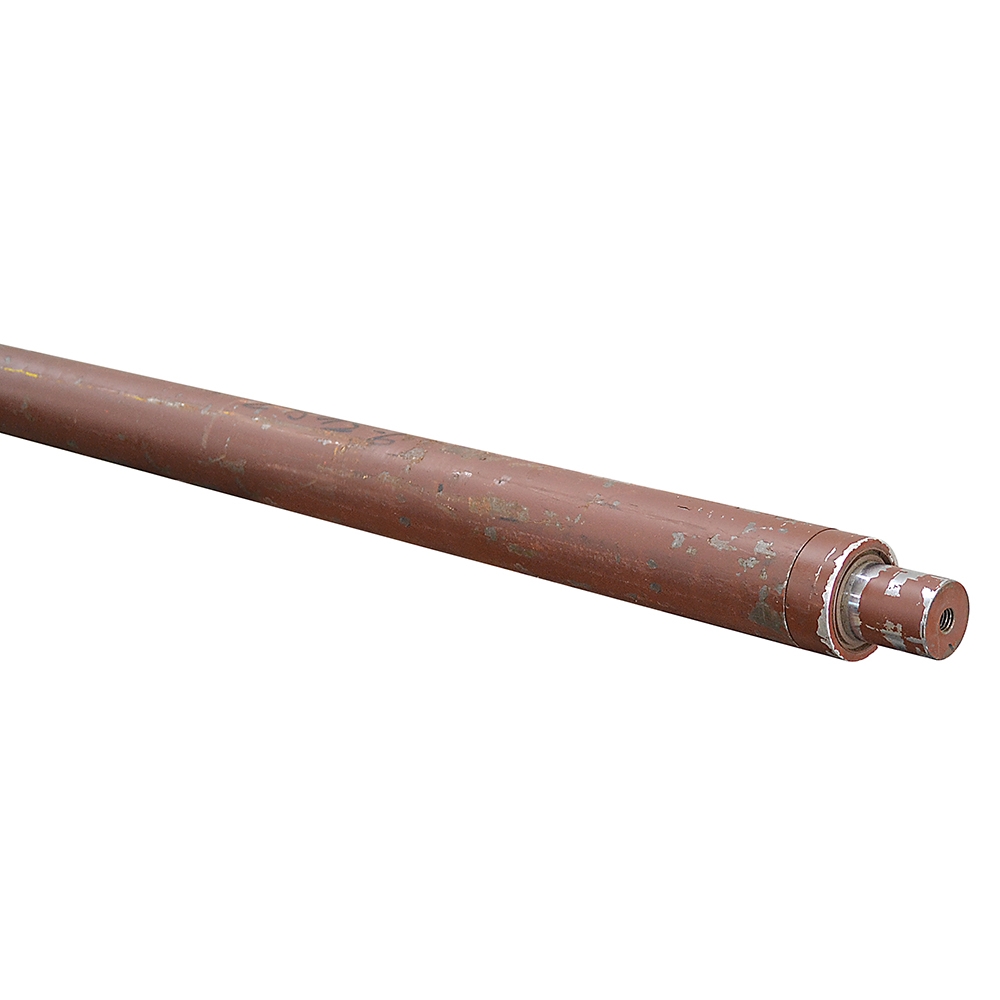

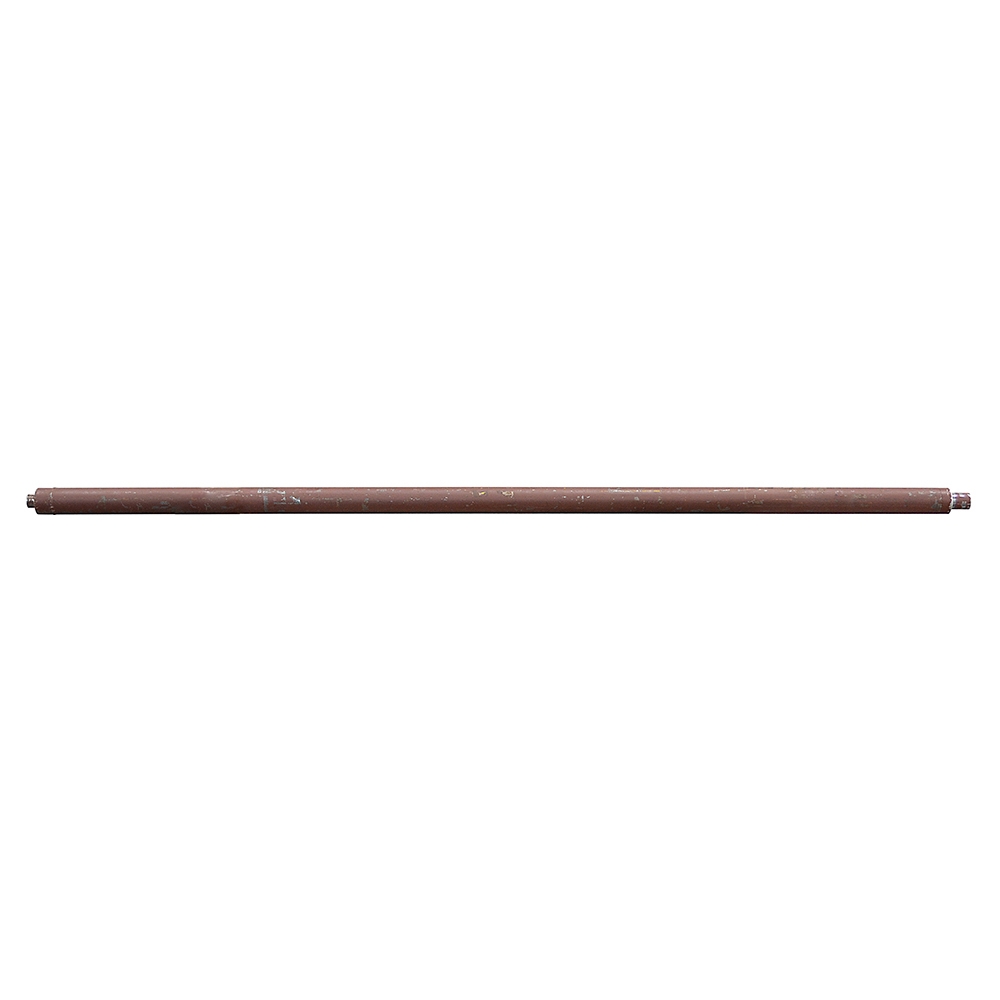

1.5" x 65" x 1.5" SA HYD CYL
Unused old inventory. Single acting hydraulic cylinder.

SPECIFICATIONS
  • Single Acting
  • Bore x Stroke 1.5" x 65"
  • Barrel Thickness 0.196"
  • Gland Retainer Wire ring gland retainer
  • Pressure 2500 PSI
  • Rod Dia. 1.5"
  • Ports 3/8" NPT
  • Retracted Length 79.75"
  • Gland Face to Rod Pin Center 1.75"
  • Shpg. 79 lbs.
END MOUNTINGS
  • Rod End Tapped
  • Thread size-Pitch 5/8"-11"
  • Thread Depth 1"
  • Base End Mounting Stud
  • Dimensions 1" long x 1.18" wide w/ 0.110" snap ring groove
