Description

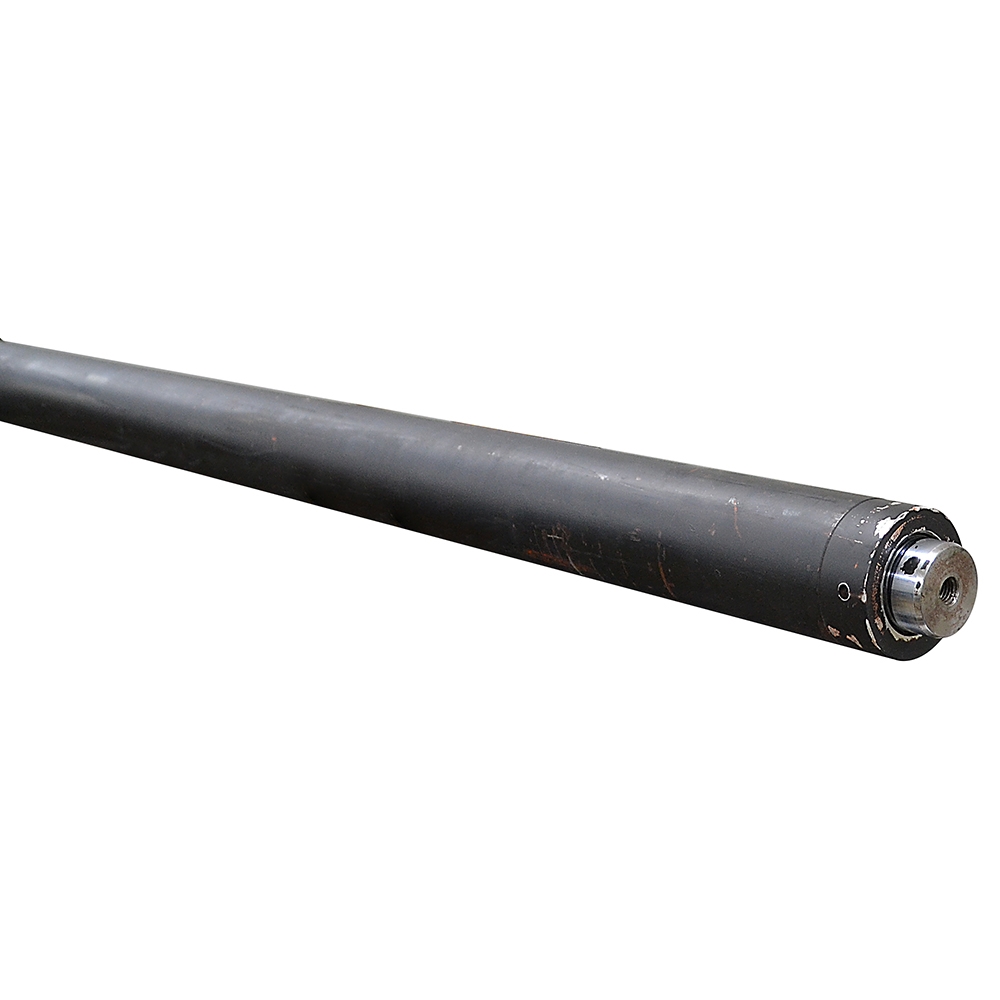

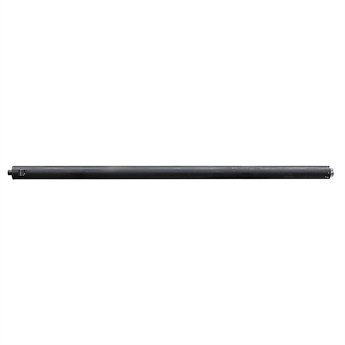

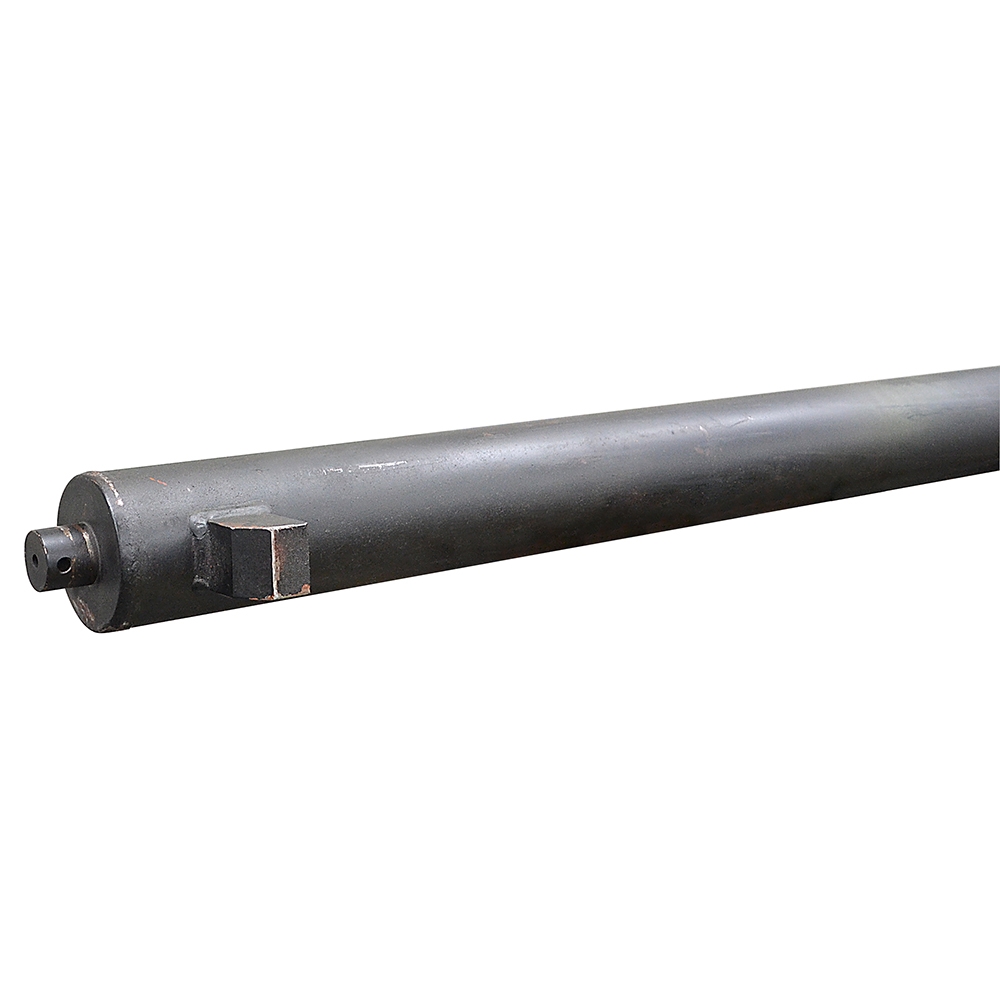

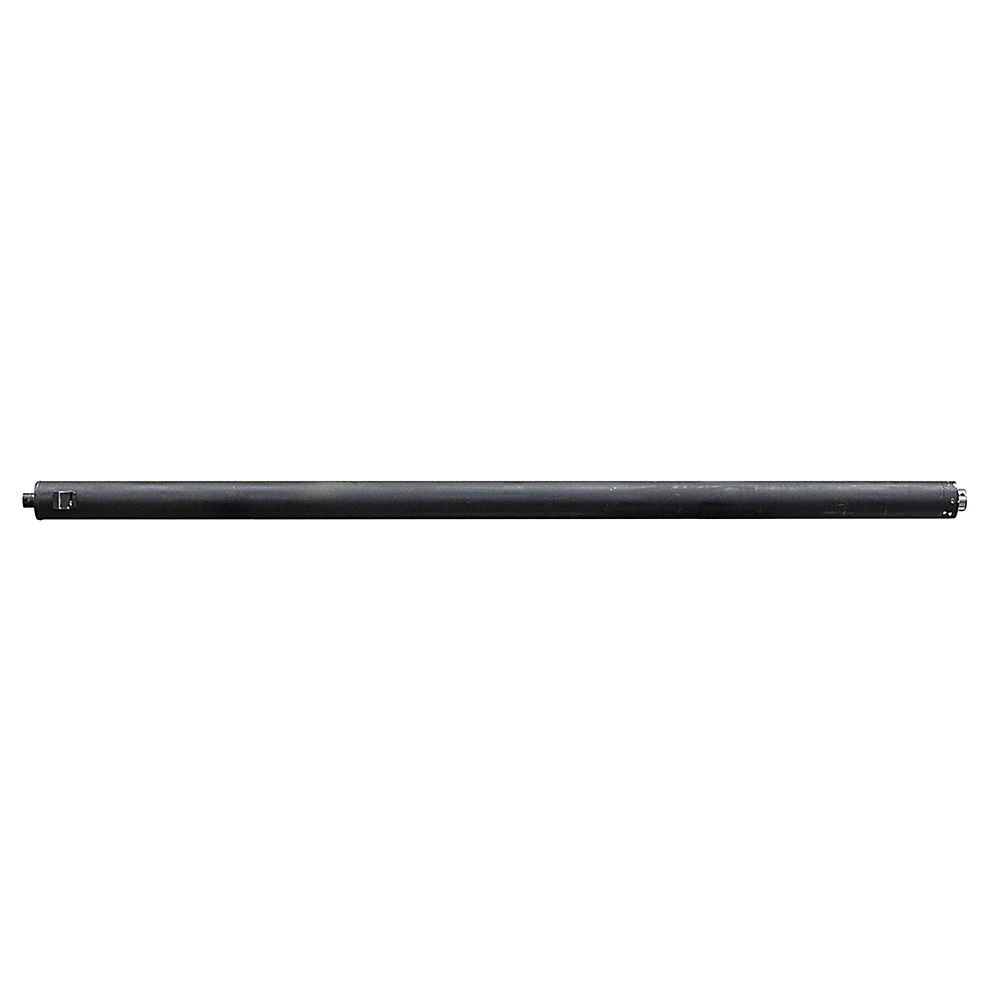

1.75" x 63.5" x 1.75" SA HYD CYL
Unused old inventory. Single acting hydraulic cylinder. Numbers on cylinder 7970002-0200 T6010411.

SPECIFICATIONS
  • Single Acting
  • Bore x Stroke 1.75" x 63.5"
  • Barrel Thickness 0.189"
  • Gland Retainer Threaded in gland
  • Pressure 2500 PSI
  • Rod Dia. 1.75"
  • Ports SAE 10 w/ SAE 4 bleeder port
  • Retracted Length 69"
  • Gland Face to Rod Pin Center 0.75"
  • Shpg. 85 lbs.
END MOUNTINGS
  • Rod End Tapped
  • Thread size-Pitch 1/2"-13
  • Thread Depth 2"
  • Base End Thru-Hole
  • Width 1"
  • Pin Center to Base End 0.32"
  • Pin Hole 1/4"
