Description

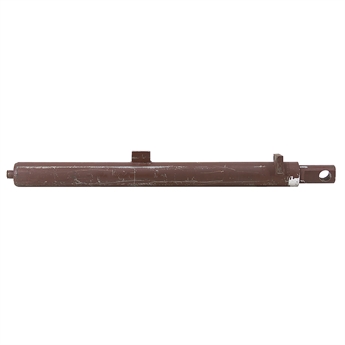

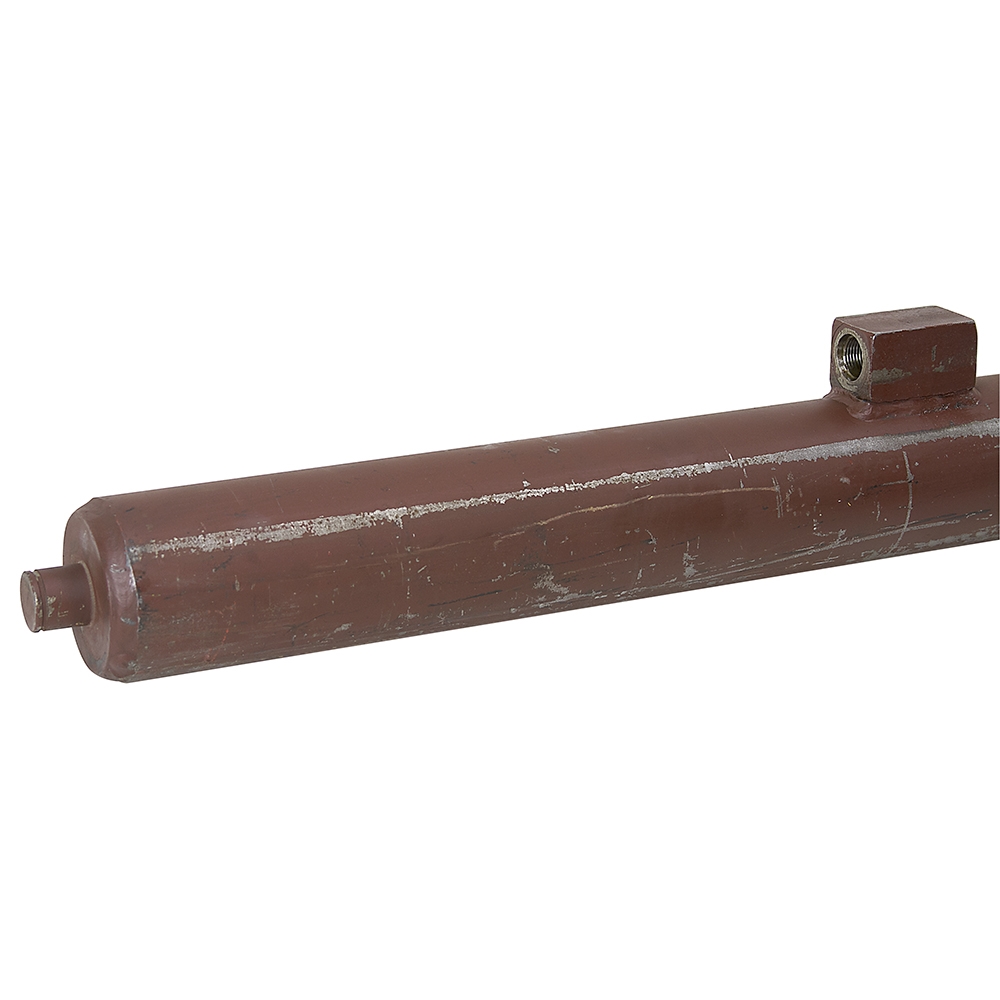

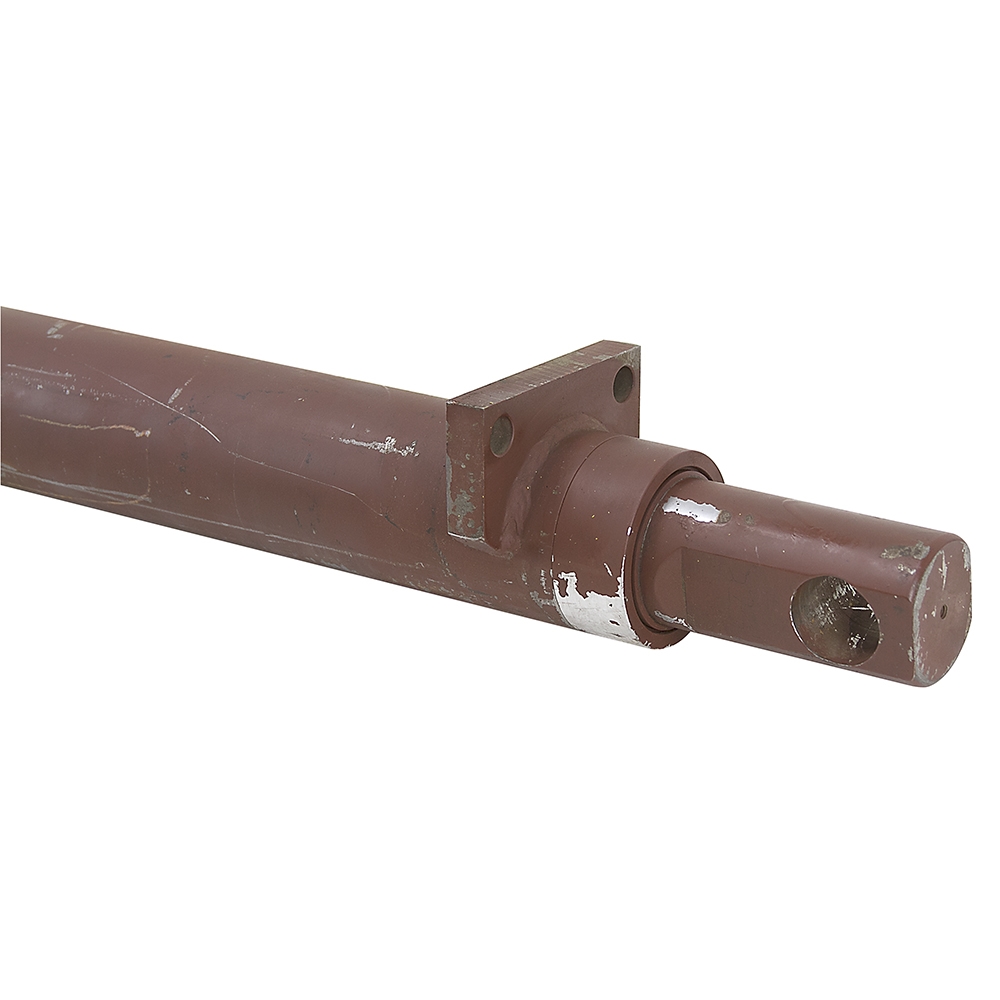

2.5" x 33" x 2" SA DISPLACEMENT HYDRAULIC CYLINDER
Unused, old inventory.  Welded cylinder with internal wire lock gland cap.

SPECIFICATIONS
  • Single Acting
  • Bore x Stroke 2-1/2" x 33"
  • Barrel Thickness 3/16"
  • Pressure 3000 PSI max.
  • Rod Dia. 2-1/2"
  • Ports SAE 10
  • Retracted Length 42-1/2"
  • Shpg. 85 lbs.
END MOUNTINGS
  • Rod End Tang
  • Max Thickness 2-1/8"
  • Pin Center to Tang End 1-1/2"
  • Pin Hole 40mm
  • Base End Flange
  • Hole Pattern Two 5/8" holes on 3-3/4" Centers
  • Distance to Rod Pin Center 5-3/4"
