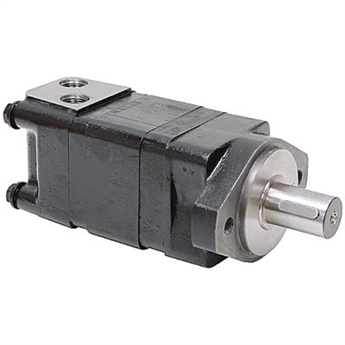

7.63 cu in Dynamic BMSY125E2GS Hydraulic Motor

Item Number: 9-7081-125

Price: $292.40
TOP
Back to top

7.63 cu in Dynamic BMSY125E2GS Hydraulic Motor

7.63 cu in Dynamic BMSY125E2GS Hydraulic Motor

item number: 9-7081-125 PRICE: $292.40 Out of Stock - More on Order Regular Stock Item



Available for curbside pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 9-7081-125
7.63 cu in Dynamic BMSY125E2GS Hydraulic Motor
Item Number: 9-7081-125
Price: $292.40
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 80 of our current catalog
Description
7.63 cu in DYNAMIC BMSY125E2GS HYDRAULIC MOTOR
Brand new. DYNAMIC BMSY series hydraulic motors. Gerolor power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Interchangeable with the following motor lines: CHAR-LYNN 2000, DANFOSS OMS / OMSS, WHITE RE / DH, PARKER ROSS MB /TF.

SPECIFICATIONS
  • Brand Dynamic
  • Model BMSY125E2GS
  • Family BMSY Series
  • Displacement 7.63 cu. in. / rev.
  • Motor Type Gerotor
  • Rotation Reversible
  • Pressure:
       2973 PSI cont.
       3265 PSI int.
  • Torque:
       3230 in-lbs. cont.
       3240 in-lbs. int.
  • Speed:
       600 RPM cont.
       720 RPM int.
  • Flow:
       19.8 GPM cont.
       23.7 GPM int.
  • Mount 2 bolt SAE A
  • Shaft 1-1/4" dia x 1.89" long w/ 5/16" keyway, tapped 1/4"-20
  • Ports SAE 10
  • Case Drain SAE 4
  • Size 7" x 5.1825" x 4.0625"
  • Shpg. 27 lbs.
Ask A Question
Submit a question for this product

Showing Questions of 1

My skid produces 33 gpm at 3000 psi will this motor work

A: Only if flow control and pressure relief or reducing valves were used to allow the motor to operate within the continuous duty ratings.
