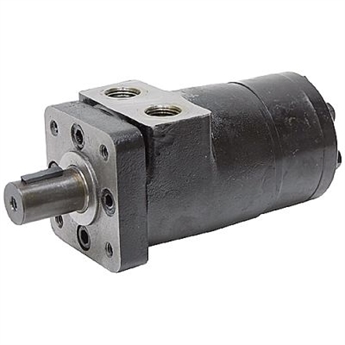

9.51 cu in Dynamic BMPH160H4KP Hydraulic Motor

Item Number: 9-7076-160

Price: $163.60
TOP
Back to top

9.51 cu in Dynamic BMPH160H4KP Hydraulic Motor

9.51 cu in Dynamic BMPH160H4KP Hydraulic Motor

item number: 9-7076-160 PRICE: $163.60 Out of Stock - More on Order Regular Stock Item



Available for curbside pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 9-7076-160
9.51 cu in Dynamic BMPH160H4KP Hydraulic Motor
Item Number: 9-7076-160
Price: $163.60
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 80 of our current catalog
Description
9.51 cu in DYNAMIC BMPH160H4KP HYD MOTOR
Brand new DYNAMIC BMPH series hydraulic motors. Gerotor power element. Interchangeable with the following motor lines: Dynamic BMPH, Danfoss DH, White RS, Parker/Ross MG/TB.

SPECIFICATIONS
  • Disp. 9.51 cu. in. / rev.
  • Motor Type Gerotor
  • Pressure:
      2031 PSI cont.
      2538 PSI int.
  • Torque:
     2673  in-lbs. cont.
     3275  in-lbs. int.
  • Speed:
      383 RPM cont.
      475 RPM int.
  • Flow:
      15.9 GPM cont.
      19.8 GPM int.
  • Rotation Reversible
  • Mount 4 bolt
  • Shaft 1" dia. x 1.57" w/1/4" Woodruff key, tapped 1/4-20
  • Ports 1/2" NPT
  • Case Drain SAE 4
  • Size 6-1/8" x 3-1/4" x 3-1/4"
  • Shpg. 17 lbs.
Ask A Question
Submit a question for this product

Showing Questions of 3

Do you have a mount for this motor

A: The mount for this motor is SAE A Four Bolt. We do not carry any mounts for this mounting pattern.

Will this fit in the same place as a h series char-lynn motor?

A: Yes, it should.

What size pump is recommended for running this motor

A: The continuous duty flow rating for this pump is 15.8 GPM, and the intermittent (less than 10% of the allowable duty cycle) flow rating is 19.75 GPM. Size the pump accordingly.
