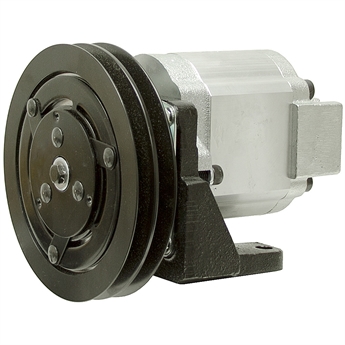

1.45 cu in Hydraulic Clutch Pump w/ Dual Groove V-Belt Pulley

Item Number: 9-1737

Price: $875.90

TOP

Description
Ask A Question
Recently Viewed

Home
Hydraulics
Hydraulic Pumps
Clutch Pumps Hydraulic
1.45 cu in Hydraulic Clutch Pump w/ Dual Groove V-Belt Pulley

1.45 cu in Hydraulic Clutch Pump w/ Dual Groove V-Belt Pulley

✓Add to Wishlist

calculate shipping

This item is on page 41 of our current catalog

print page

You may also consider:

SAE A 2-Bolt Cast Iron Pump & Motor Foot Mount - Direct Replacement For 9-1737 & 9-1738 308-0001-003 9-1737-B $52.10
1.45 cu in Hydraulic Pump w/Tapered Shaft for Electric Clutch Rexroth AZPN10022RXR12MA 9-1737-P $681.00
1.45 cu in Hydraulic Pump w/Tapered Shaft for Electric Clutch Rexroth AZPN10022RXR12MA 9-1737-P $681.00
12 Volt DC Two A-Belts Clutch (Fits 9-1737 & 9-1738) Ogura 512606 1-2184 $142.65
1.45 cu in Rexroth Hydraulic Clutch Pump 6 Groove Pulley For Serpentine Belt 9-1737-S-6 $760.50
1.45 cu in Rexroth Hydraulic Clutch Pump w/8 Groove Serpentine Clutch CT20128D515376RRN 9-1737-S-8 $894.60
2.32 cu in Hydraulic Clutch Pump w/ Dual Groove V-Belt Pulley 9-1738 $730.50
2.32 cu in Rexroth Hydraulic Clutch Pump w/6 Groove Pulley For Serpentine Belt 9-1738-S-6 $809.15
2.32 cu in Rexroth Hydraulic Clutch Pump w/8 Groove Pulley For Serpentine Belt CT20208D515376RRN 9-1738-S-8 $930.60

Description
Ask A Question
Recently Viewed

Description

DESCRIPTION

HYDRAULIC CLUTCH PUMP

Brand new. Hydraulic pump driven by 12 volt DC clutch. For use in marine, agricultural and industrial use. Use for remote hydraulics in service trucks, boats, trucks with automatic transmissions, farm tractors, snowplows, etc.
SPECIFICATIONS

12 VDC operation
2 belt 1/2" A type
7" dia
Watts 47
Amps 3.9
Cast iron foot mount
CW
3000 RPM max
Rear ports
1.45 cu in/rev
12 GPM at 2000 RPM
3000 PSI max
IN SAE 16, OUT SAE 12
Shpg 32 lbs

Ask A Question

ASK A QUESTION

Submit a question for this product

Showing Questions of 7

Would this pump enough fluid to operate a small winch on a small shrimpboat at around 800 to 1000 rpm

A: As long as this pump met your GPM and PSI requirements to operate your hydraulic motor properly.
Date Submitted: 10/25/2020

Are these pumps available with side ports as apposed to back ports? Cheers

A: No we do not have this pump with side ports.
Date Submitted: 02/11/2020

Is this a open or closed center pump

A: This is a gear pump and as such the system would need to be Open Center.
Date Submitted: 11/14/2018

would this run a three point backhoe attachment

A: It most likely would. The flow and pressure are comparable to some larger compact tractors, and smaller standard tractors.
Date Submitted: 01/21/2018

can this pump be changed to ccw rotation?

A: No, it cannot.
Date Submitted: 04/18/2017

Are seals for this pump available

A: We can special order them but do not stock them
Date Submitted: 06/22/2014

What brand is this pump?

A: It is made by a local company in the US for our company.
Date Submitted: 06/11/2014
