Description

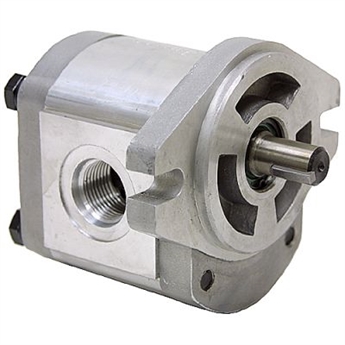

0.48 cu in DYNAMIC GPF2008PA HYD PUMP
Brand new, DYNAMIC GP-F20 series hydraulic gear pump. Aluminum center section with cast iron end covers.

SPECIFICATIONS
  • Disp. 0.48 cu. in. / rev.
  • Pump Type Gear
  • Rotation CCW
  • Pressure:
      3650 PSI peak
  • Speed:
      2000 RPM rated
      3600 RPM max.
  • Flow:
      3.87 GPM rated
      6.96 GPM max.
  • Mount 2 bolt SAE A
  • Shaft 5/8" dia. x 1-1/4" long keyed with 5/32" wide keyway
  • Rqd. Filtration 25 micron
  • Inlet Port SAE 12
  • Outlet Port SAE 10
  • Size 4" x 5-1/8" x 4-1/2"
  • Shpg. 10 lbs.
Ask A Question
Submit a question for this product

Showing Questions of 1

Can this pump be used with lateral loads such as a pulley drive or should it only be used with a direct drive?

A: The shaft support is a sleeve bushing, so side load will reduce the lifespan of the pump dramatically. Direct drive is always preferable.
