Description

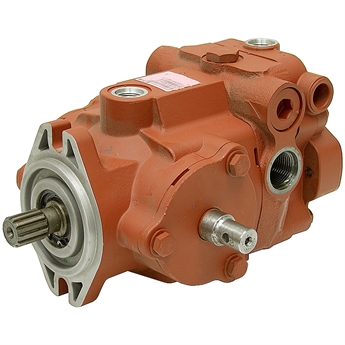

EATON VARIABLE PISTON PUMP
New EATON-CESSNA. Variable displacement closed loop piston pump. Integral charge pump. Manual control shaft for displacement and direction change. Auxillary mount on rear for gear pump.
SPECIFICATIONS
  • Model 70160-REN
  • Displacement Variable to 1.24 cu.in. max.
  • Flow 17 GPM at 3600 RPM
  • Pressure 5000 PSI cont.
  • Inlet charge pressure 90-150 PSI
  • Max. Speed 3600 RPM
  • Rotation CW
  • Work ports SAE 12
  • Charge Inlet Port SAE 8
  • Auxillary Port SAE 8
  • Case Drain SAE 8
  • Mount SAE A 2 bolt
  • Rear Mount SAE A 2 bolt for 5/8-9 tooth spline
  • Shaft 7/8"-13 tooth spline
  • Size 8-1/2" x 6-1/2" x 6"
  • Shpg 30 lbs.
More Specs

MORE INFO

Click to view...

Click on boxes below for more information about this product.
Additional InformationMore Specs
Ask A Question

Showing Questions of 2

How much HP input needs this pump?

A: At full flow and max continuous pressure, this pump would require approximately 78-80 HP to drive it.

can two of these pumps be bolted together end to end

A: No the socket on the back is for a smaller shaft and usually used for a gear pump to give auxiliary pump flow.
