Description

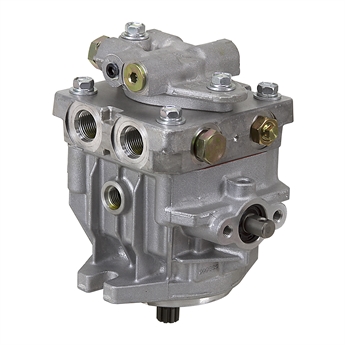

0.62 CU IN WHITE 101010000017 VARIABLE DISPLACEMENT AXIAL PISTON PUMP
New, WHITE DRIVE PRODUCTS 101010000017 variable displacement axial piston pump. Intended to operate hydraulic wheel motors on zero turn radius equipment applications including turf, light construction, and other mobile equipment. Features include die cast aluminum body with built-in cooling fins, roller bearing support for piston group, bronze-coated wear plate, built-in bypass reliefs, charge pump, and bypass valve for free-wheeling equipment. Suitable for belt or direct drive. Left and Right hand pumps are determined by the location of the DDC (Direct Displacement Control) shaft when looking at the side of the pump with the work ports and input shaft facing down.

SPECIFICATIONS
  • Disp. 0.62 cu. in. / rev.
  • Pump Type Variable piston
  • Rotation CW
  • DDC Shaft Location Left
  • Pressure:
      1425 PSI cont.
      2125 PSI int.
      3500 PSI peak
  • Speed:
      600 RPM min.
      3600 RPM max.
  • Flow (Fully Stroked)
      11 GPM @ 3600 RPM
  • Mount Two-bolt SAE A
  • Shaft 15mm dia. x 1" long 9T spline
  • DDC Shaft 12mm dia. w/ 5mm crosshole and dual flats
  • Rqd. Filtration 20 Micron
  • Oil 10cSt (60 SUS) viscosity
  • Inlet Port SAE 6
  • Work Ports SAE 8
  • Drain Port SAE 6
  • Size 6-1/4" x 5-1/4" x 5-1/8"
  • Shpg. 10 lbs.
