SAE 6 Shuttle Valve Hydraforce LSV1-6T-N

Item Number: 9-6361

Price: $21.20
TOP
Back to top

SAE 6 Shuttle Valve Hydraforce LSV1-6T-N

SAE 6 Shuttle Valve Hydraforce LSV1-6T-N

item number: 9-6361 PRICE: $21.20 757 In Stock Regular Stock Item



Available for in store pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 9-6361
SAE 6 Shuttle Valve Hydraforce LSV1-6T-N
Item Number: 9-6361
Price: $21.20
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 59 of our current catalog

You may also consider:

Description

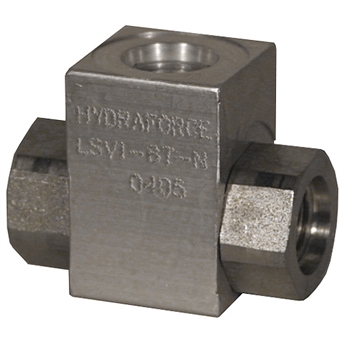

Brand New HYDRAFORCE LSV1-6T-N Hydraulic ball-type shuttle valve for use as a load-shuttling directional selector. Floating ball checks to the low pressure side. Commonly used to direct oil from the high pressure side of a bidirectional hydraulic motor to a pressure-released hydraulic brake.

  • 7 GPM max.
  • 3500 PSI
  • SAE 6 Ports
  • Shpg. 1 lbs.


California
Residents
Prop 65 Warning WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

More Specs
Click on boxes below for more information about this product.
InstructionsMore Specs
Ask A Question
Submit a question for this product

Showing Questions of 1

What is the behavior of this valve when equal pressure is applied to the inlet ports?

A: In a perfectly equalized situation, the check ball would possibly remain centered between the fluid passing from both inlets to the outlet, as long as pressure and volumes remain exactly equal. In real world operation, the ball will check to the low pressure side.
