1 Spool 25 GPM Prince LS-3030-1 Valve

Item Number: 9-1517

Price: $113.15
Back to top

1 Spool 25 GPM Prince LS-3030-1 Valve

1 Spool 25 GPM Prince LS-3030-1 Valve

item number: 9-1517 PRICE: $113.15 20 In Stock Regular Stock Item

Available for curbside pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 9-1517
1 Spool 25 GPM Prince LS-3030-1 Valve
Item Number: 9-1517
Price: $113.15
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 25 of our current catalog

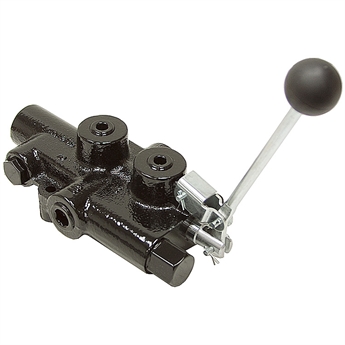

Brand new, PRINCE model LS3030-1 log-splitter valve. For control of double-acting cylinders. Handle springs to neutral.

  • 25 GPM
  • 2,750 PSI max.
  • Adj. relief set to 2,250 PSI
  • Relief setting range 500-2,750 PSI
  • Open center
  • WORK ports 1/2" NPT
  • IN/OUT ports 3/4" NPT
  • Size 9-1/4" x 5" x 3"
  • Shpg. 8 lb.
Ask A Question
Submit a question for this product

Showing Questions of 5

Does this valve load check? I need the cylinder to be able to float freely when in the valve is in neutral.

A: This valve does not appear to be designed with a load check. The manufacturer literature makes no mention of it on these models.

is there a similar model with the full 3000psi? I need open center, spring to center for a double acting cyl.

A: The most similar function can be found in item 9-6701.

Does this valve have power beyond?

A: This valve is not designed for power beyond.

Item#. 9-1517. Spring return to neutral. Both ways with no detent. Thanks

A: Yes, that is what this valve does.

I am looking for a control valve for a post driver. I only have one hose connecting to the cylinder and it needs to hold in the raised position until I push the handle down. Will the LS30301 valve work for this application?

A: The 9-1517 is meant for use with double acting cylinders. See item 9-6700 or 9-6763 for single acting cylinders.
