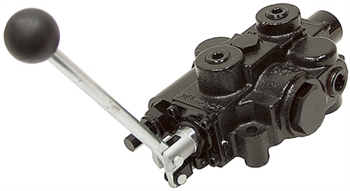

1 SPOOL 30 GPM PRINCE RD512CA5A4B1 OC VALVE
Brand new PRINCE. Hydraulic control valve for operating double acting cylinders. Monoblock gray cast iron body. Hard chrome plated spools. Load checks.(click here to see the same valve with ORB ports)
SPECIFICATIONS
Open Center
Spools One
Flow 30 GPM max.
Pressure 3000 PSI max.
Relief Valve factory set at 2000 PSI Adjustable 1500-3000 PSI
In/Out Ports 3/4" NPT
Work Ports 1/2" NPT
Mount 3 holes thru body
Size 9-1/2" x 5" x 3-1/4"
Shpg. 16 lbs.
Spool Details: Spool 1 Double acting spring centered
When using the power beyond. The outlet port that goes to the tank. What size is that outlet port.
A: The tank/return port is 3/4" NPT. This does not change when the Power Beyond sleeve is installed.
Date Submitted: 12/06/2018
Will item 9-8454-RD work with this valve?
A: Yes, that is the correct air shift kit for use with this series.
Date Submitted: 10/25/2018
is this spool spring center to neutral position with cylinder ports blocked in neutral
A: Yes.
Date Submitted: 06/18/2018
IS THIS THE VALVE I NEED TO ADD THIRD SCV TO LOADER OF 1977 550 T.L.B. FOR GRAPPLE ON LOADER. THANKS.
A: We have no information about the system of that unit to say. It comes as Open Center, and can be converted to Closed Center or Power Beyond if necessary.
Date Submitted: 04/03/2018
Does this valve have a specific inlet and outlet, from pump?
A: Yes. They are marked in the casting. As facing the spool, handle end; IN is on the left with the relief valve, OUT is on the right.
Date Submitted: 03/29/2018
Will this work on 5 0r 6 foot cylinder for a fence post driver?I think the rod is 3/4 in. Also can it be used closed or open center? Thankyou.
A: This will work on any double acting hydraulic cylinder. It is supplied for use in an open center system but can be converted to closed center by adding a closed center plug (item 9-4895-C).
Date Submitted: 01/07/2016
is the power beyond plug avaliable for this valve
A: Yes. 9-4895-B. It can also be found on the right side of the page under "You may also consider"
