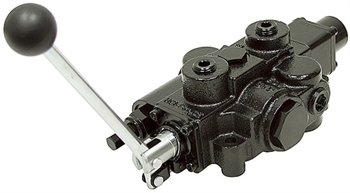

1 SPOOL 30 GPM PRINCE RD516GG5A4B1 OC VALVE W/FLOAT
Brand new PRINCE. Hydraulic control valve for operating double acting cylinders. Monoblock gray cast iron body. Hard chrome plated spools. Load checks. Convertible to power beyond or closed center by changing conversion plug (see related items above).(click here to see the same valve with NPT ports)
SPECIFICATIONS
Open Center
Spools One
Flow 30 GPM max.
Pressure 3000 PSI max.
Relief Valve factory set at 2000 PSI Adjustable 1500-3000 PSI
In/Out Ports SAE 12
Work Ports SAE 10
Mount 3 holes thru body
Size 11" x 5" x 3-1/4"
Shpg. 16 lbs.
Spool Details: Spool 1 Double acting spring centered with detented float position.
Will this valve operate two different hydraulic cylinders? I have a riding lawnmower, and I have seen guys putting front end loaders on them. It seems like a fun project, and I may even get some work done with it. If this is not the right valve to run a small system, what would be? Thanks, Hal
A: No this valve only controls 1 cylinder. Since you are using this on a small piece of equipment a valve such as 9-7862-F would be recommended.
