Description

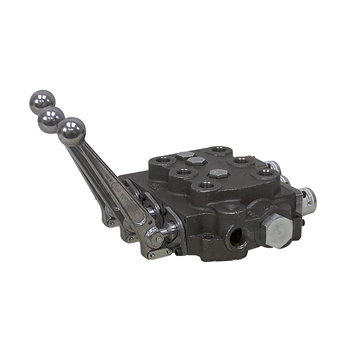

3 SPOOL DOUBLE ACTING DIRECTIONAL CONTROL VALVE
Brand new CROSS BA3A11XAAG3EA0 series directional control valve with first spool float for operating double acting cylinders. Features include built-in adjustable pressure relief valve, open center, side inlet/outlet and top work ports. Intergral load holding check valves. Can be converted to power beyond.

SPECIFICATIONS
  • Brand Cross Mfg.
  • Model# SBAF22
  • Cross Item# 150340
  • Open Center
  • Spools Three
  • Flow 30 GPM max.
  • Pressure 2500 PSI max.
  • Relief Valve Adjustable 1500-3000 psi (set at 2000 psi)
  • In/Out Ports 3/4" NPT
  • Work Ports 1/2" NPT
  • Mount Three, 3/8" dia. holes
  • Size 13.25" x 7.3" x 7.13"
  • Shpg. 37 lbs.


Spool Details:
  Spool 1 Double-acting cylinder spool,spring to center w/ 4th position float detent
  Spool 2 Double-acting cylinder spool, spring to center
  Spool 3 Double-acting cylinder spool, spring to center
