Description

DESCRIPTION

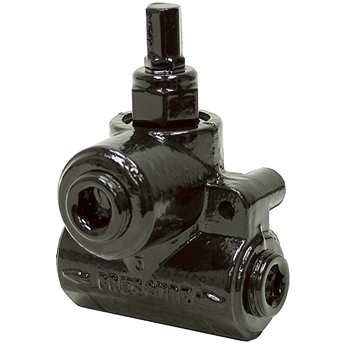

3/4 NPT HYD RELIEF VALVE
Brand new, PRINCE model RV-2H inline relief valve. Differential poppet design provides smooth and quiet performance with a minimum variation between cracking and full pressure.

SPECIFICATIONS

Flow Rating 30 GPM max
Pressure Relief Range 1500-3000 PSI
Factory Setting 2000 PSI
Ports 3/4" NPT
Size 3-1/4" x 2-7/8" x 5"
Shpg. 5 lbs.

Ask A Question

ASK A QUESTION

Submit a question for this product

Showing Questions of 6

will this relief valve work with pump pto-a-5-6-s?

A: Yes, it will.
Date Submitted: 08/16/2018

Will this valve work on converting a PTO brushhog over to hydraulic drive for the spin down on the blades when the hydraulic is turned off? It will be hooked to a Catapiller 242B3 Skidsteer.

3/4" NPT 30 GPM 1500-3000 PSI Relief Valve Prince RV-2H

Item Number: 9-6135-75-H

3/4" NPT 30 GPM 1500-3000 PSI Relief Valve Prince RV-2H

3/4" NPT 30 GPM 1500-3000 PSI Relief Valve Prince RV-2H

Showing Questions of 6

will this relief valve work with pump pto-a-5-6-s?

A: Yes, it will.
Date Submitted: 08/16/2018

Will this valve work on converting a PTO brushhog over to hydraulic drive for the spin down on the blades when the hydraulic is turned off? It will be hooked to a Catapiller 242B3 Skidsteer.

A: Better choices would items 9-8745, or 9-4019-50-H. The relief passage on this valve was designed to go back to tank.
Date Submitted: 04/04/2017

Will this work for a single-acting cylinder--In other words, will this valve allow oil to flow both directions?

A: Yes. The pressure pathway is not direction specific.
Date Submitted: 03/26/2017

What are the specs on the mounting holes - dia and spacing?

A: The mounting holes are .28" diameter at 2.5" center spacing.
Date Submitted: 02/16/2017

Hello, Is this relief valve certified / suitable to be used for compressed air systems? Thank you Adam

A: No, these valves are intended for use with oil. I have not seen one work correctly with air.
Date Submitted: 10/04/2016

will this work out ok for a 96" skid steer hydraulic plow ?

A: The flow capacity and pressure range should be within the ratings of most skid steer hydraulic systems.
Date Submitted: 10/10/2014
