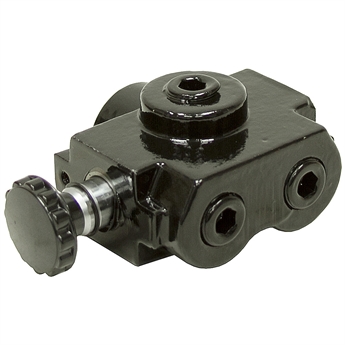

1/2" NPT 20 GPM Selector Valve Prince SS-2A1D

Item Number: 9-6134

Price: $78.65
Back to top

1/2" NPT 20 GPM Selector Valve Prince SS-2A1D

1/2" NPT 20 GPM Selector Valve Prince SS-2A1D

item number: 9-6134 PRICE: $78.65 55 In Stock Regular Stock Item

Available for curbside pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 9-6134
1/2" NPT 20 GPM Selector Valve Prince SS-2A1D
Item Number: 9-6134
Price: $78.65
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 35 of our current catalog
Brand New PRINCE Two position two-way selector valve to allow one pump source to select between two hydraulic circuits. Also use to select between two different single acting hydraulic cylinders from one valve.

  • Model SS2A1D
  • GPM 20
  • PSI 2500
  • Two position
  • Ports 1/2" NPT
  • Size 5-1/8" X 3-1/4" X 2-1/4"
  • Shpg 6 lbs
Ask A Question
Submit a question for this product

Showing Questions of 5

Can knob be moved to opposite end of spool?

A: Yes the knob can be moved to the opposite end of the spool.

I want to operate two different Two way Hyde cylinders Will this do it ?

A: No. This would only split one flow. You may need item 9-4128 if you wish to toggle between operating two separate double-acting cylinders from the same directional spool valve.

Can this be used as a float valve?

A: No. Item 9-7899 is the comparable product.

Have a case 646 loader hooking a log splitter into the system. pump pressure go's to a drive/ decklift dubble spool valve with a power beyond port that line go's to the loader dubble control valve. I tapped into that line to go to the log splitter which barely moves the cylinder. Will this valve seprate my loader valve which I don't use when splitting tractor is stationary. and my log splitter which I uncouple hoses when done and use the loader?

A: If you have an open center system, and you are tapping into the power beyond line before the downstream valve, but after the primary valve, then it's likely that neither valve past the primary will operate. The existing downstream valve will have to be capable of power beyond as well, and that flow would need to be plumbed to feed the splitter valve. Plumbed as described any usable pressure will dump to the path of least resistance through the center of the valve not being used, rendering both valves unusable.

Reference your Item # 9-6134. Is the selector knob actuated by turning it clockwise/counterclockwise, or is it a push/pull to select ?

A: The spool shift is a push/pull actuation.
