15:1 Right Angle Cast Iron Worm Gear Reducer 2.09 HP Right Output Worldwide HDRS-206-15-R

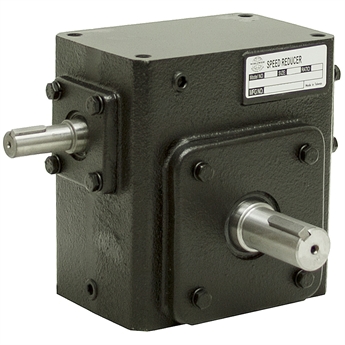

15:1 RIGHT ANGLE WORM GEAR REDUCER
Brand new, WorldWide Electric right-angle worm gear reducer. Cast iron housing. Interior oil channel directly guides and constantly lube bearings. Embedded double-lip oil seals. Tapered roller bearings on output and input shafts. Double bearings used on both shafts. A set of four tapped mounting holes on top and bottom of housing. Shipped filled with Mobil #SHC632 synthetic oil for the "A" position.(Refer to installation and maintenance manual for oil capacity for different mounting positions)

SPECIFICATIONS

• Brand WorldWide Electric
• Model Number HDRS-206-15-R
• Box Size 206 (2.06" Center of Input Shaft to Center of Output Shaft)
• Ratio 15:1
• Input Speed 1750 RPM max.
• Output Speed 116 RPM max.
• Mechanical HP (1.0 SF) Ratings
    Input HP 2.09 HP
    Output Torque 1002 in-lb.
    Output HP 1.78 HP
• Thermal Capacity Ratings
    Input HP 1.40 HP
    Output Torque 673 in-lb.
    Output HP 1.20 HP
• Efficiency 85%
• Overhung Load 700 lbs.
• Output Shaft Thrust Load 750 lbs.
• Output Centerline Height 2.281"
• Input Shaft 5/8" dia. x 1-9/16" keyed
• Output Type Right Hand Shaft
• Output Shaft 1" dia. x 2-3/32" keyed
• Mount Two sets of four 3/8"-16 tapped holes on 5" x 2-7/8" centers
• Size 7-1/8" x 5-3/16" x 6-3/8"
• Shpg. 28 lbs.
