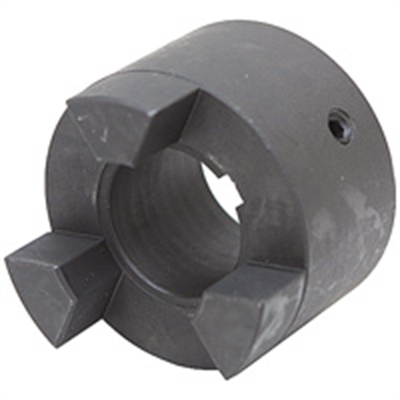

1" L-095 Jaw Coupling Half

Item Number: 1-3421-M

Price: $10.40
TOP
Back to top

1" L-095 Jaw Coupling Half

1" L-095 Jaw Coupling Half

item number: 1-3421-M PRICE: $10.40 134 In Stock Regular Stock Item


calculate shipping
Calculate Shipping for Item 1-3421-M
1" L-095 Jaw Coupling Half
Item Number: 1-3421-M
Price: $10.40
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 140 of our current catalog
Description
3-PIECE FLEXIBLE COUPLING HALF
Brand new, 3-piece flexible coupling half. Ideal for connecting engines or electric motors to pumps, drive shafts, etc. A complete 3-piece coupling consists of two coupling halves from compatible series and one corresponding flexible insert. The following series jaw coupling halves can be interchanged; L-90 with L-095 and L-099 with L-100. Coupled length is the overall length of an assembled 3-piece coupling of the same series. Interchangeable with Lovejoy and Martin brands.

SPECIFICATIONS
  • Series L-095
  • Torque 169 in-lbs max.
  • Speed 3600 RPM max
  • Power 10 Hp max @ 3600 RPM
  • Bore 1", keyed, two setscrews
  • O.D. 2-7/64"
  • Coupler Half Length 1.45"
  • Coupled Length 2-1/2"
  • Shpg. 1 lb.
Ask A Question
Submit a question for this product

Showing Questions of 4

How much clearance should be between the engine shaft and the pump shaft?

A: There should be at least .460" between the shaft to allow room for the insert. The coupler jaws need .465" to mesh properly. A gap of no more than .500" would be ideal.

replaced a engine on log splitter 9hp with one inch shaft the coupler wont fit on shaft will this fit on

A: This coupler half is made for 1" shafts. It will mate with any other L-095 type coupling half and insert.

Dear sir, Is this coupler made of aluminium?I am looking for 1" bore aluminium couplers for fishing reels(no rust). Thanks.

A: We do not currently carry a line of aluminum 3 jaw couplings.

what is the dimensions of the keyway and set screw threads for this particular half? Thanks in advance,

A: This has a 1/4" keyway, sorry no spec on the setscrews.
