Description
5 X 2 SWIVEL PLATE CASTER

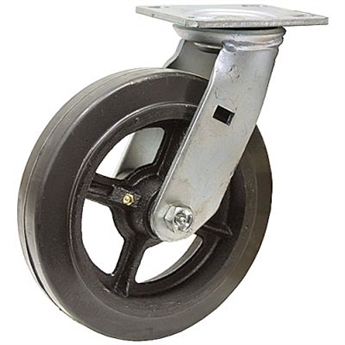

Brand new, WC6650-01-RCI rubber tire on cast iron wheel swivel plate caster. Case hardened double ball raceways provide extra capacity and durability. Top plate and legs are made out of 1/4" cold forged steel and corrosion-resistant zinc plated finish. 5/8" nut and bolt kingpin and 2-1/2" for spacing with 1/2" zerk axle and lock nut. Tread is a high quality cushion rubber, chemically bonded to the painted cast iron core. Provides excellent shock loading, dampens vibration, and provides a quite ride. Soft rubber tread helps the equipment it's attached to, roll over debris, and uneven floor conditions.

SPECIFICATIONS
  • Model WC6650-01-RCI
  • Wheel Diameter 5"
  • Wheel Width 2"
  • Load Capacity 450 lbs.
  • Mounting height 6-1/2"
  • Top Plate 4" x 4-1/2" x 1/4" thick
  • Mount
      2-5/8" x 3-5/8" slotted to 3" x 3" centers
  • Bolt Holes 3/8"
  • Wheel Tread Material Rubber
  • Wheel Tread Color Black
  • Wheel Tread Durometer 60-80 Shore A
  • Wheel Core Material Cast iron
  • Wheel Bearing Roller
  • Wheel Temperature Rating -40ºF to 180ºF
  • Shpg. 7 lbs.
More Specs
Click on boxes below for more information about this product.
Additional InformationMore Specs
Ask A Question
Submit a question for this product

Showing Questions of 2

available with brake? rigid?

A: These are available as rigid, but not with a brake.

is this a good wheel for long term wet acidic ( cider) enviroments

A: This has a cast iron wheel which is listed as not satisfactory to use with cider. Should not be used.
