Description

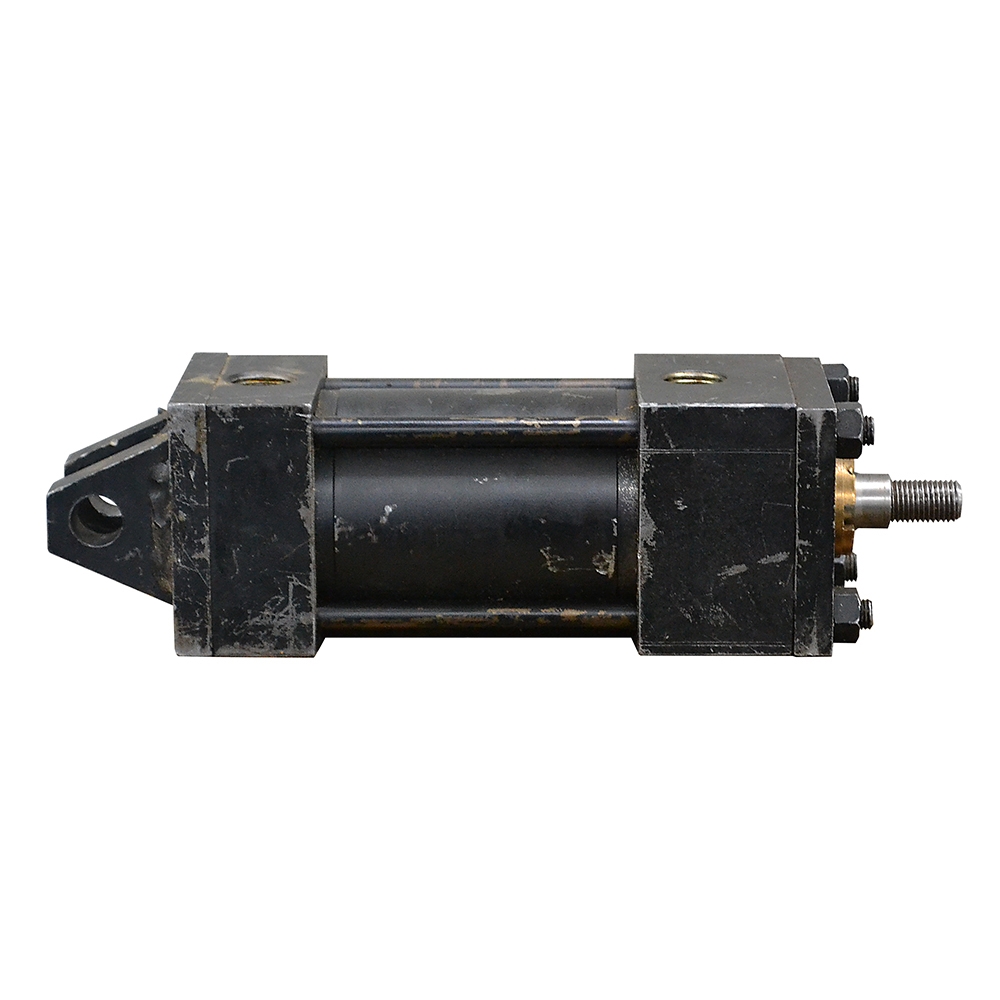

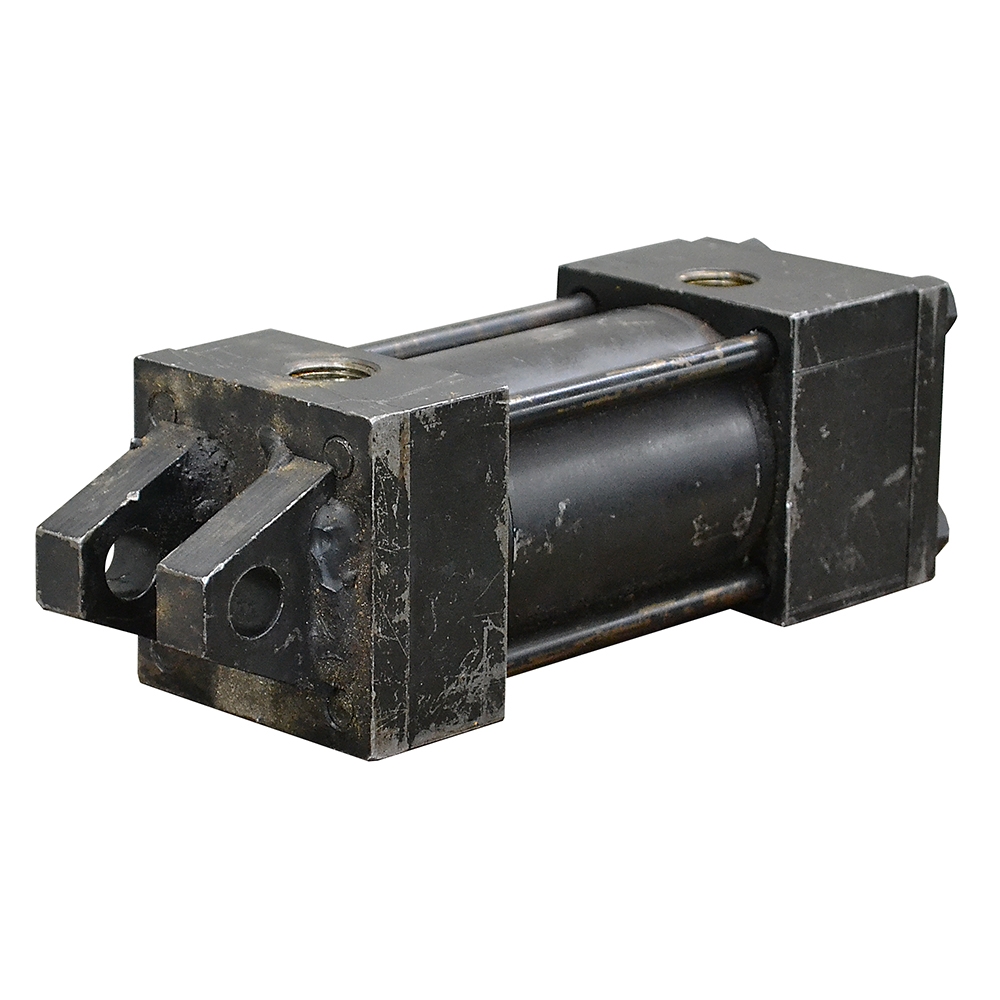

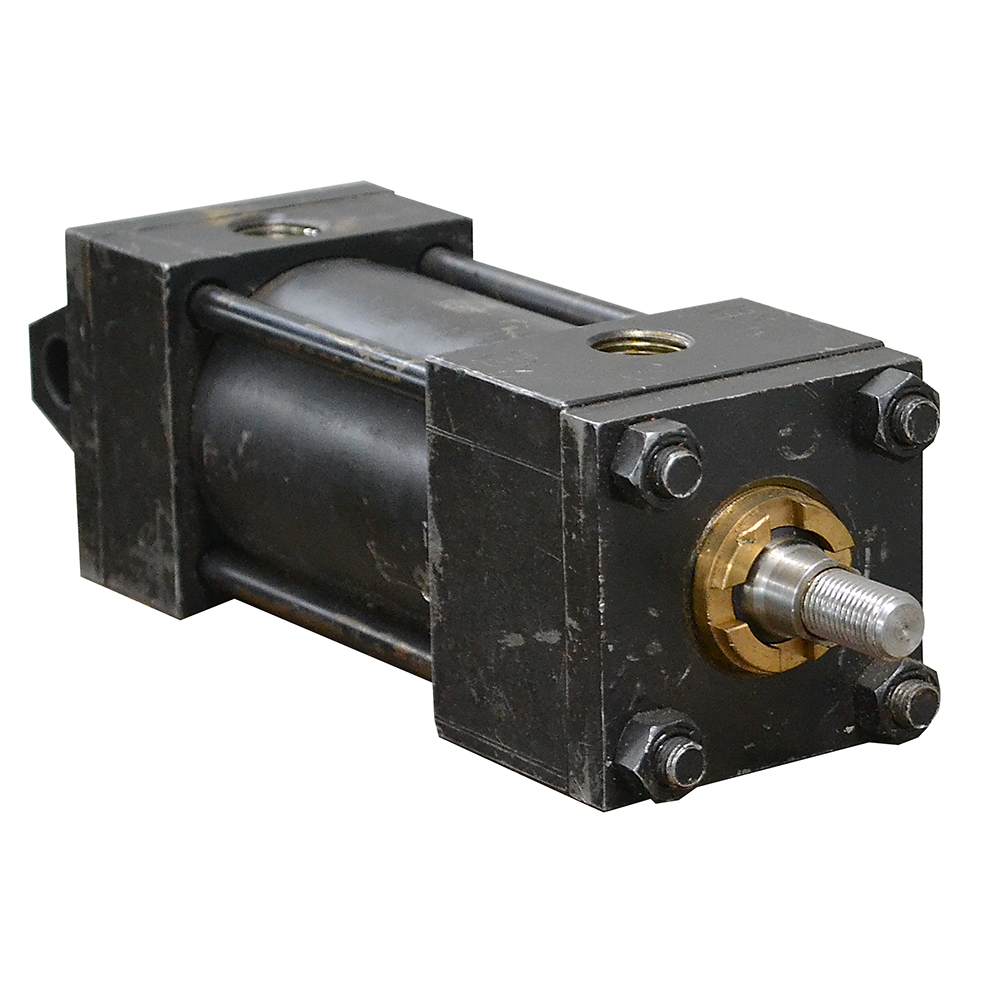

2" x 2" x 0.625" DA AIR CYL
Unused old inventory. PARKER double acting pneumatic cylinder. Numbers on cylinder B02A14.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2" x 2"
  • Barrel Thickness 0.122"
  • Gland Retainer Tie-Rod
  • Pressure 250 PSI
  • Rod Dia. 0.625"
  • Ports 3/8" NPT
  • Retracted Length 8.5"
  • Gland Face to Rod Pin Center 1.25"
  • Shpg. 10 lbs.
END MOUNTINGS
  • Rod End Threaded
  • Thread Size-Pitch 7/16"-20 TPI
  • Thread Length 0.625"
  • Base End Clevis
  • Outside Width 1.79"
  • Inside Width 0.79"
  • Throat Depth 1.24"
  • Pin Hole 1/2"
