12 Volt DC 1.4 GPM 3000 PSI Double Acting Hyd Power Unit Bucher Wuxi YBZ5F21C1A61WUUTT1C - Missing Tank

Item Number: BB9-12368-21

Price: $349.99
TOP
Back to top

12 Volt DC 1.4 GPM 3000 PSI Double Acting Hyd Power Unit Bucher Wuxi YBZ5F21C1A61WUUTT1C - Missing Tank

12 Volt DC 1.4 GPM 3000 PSI Double Acting Hyd Power Unit Bucher Wuxi YBZ5F21C1A61WUUTT1C - Missing Tank

item number: BB9-12368-21 PRICE: $349.99 1 In Stock Surplus Item



Available for curbside pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item BB9-12368-21
12 Volt DC 1.4 GPM 3000 PSI Double Acting Hyd Power Unit Bucher Wuxi YBZ5F21C1A61WUUTT1C - Missing Tank
Item Number: BB9-12368-21
Price: $349.99
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description

  Missing Parts:  This power unit is missing the reservoir tank.  It was removed to replace a damaged tank from another power pack.  This item has not been used.

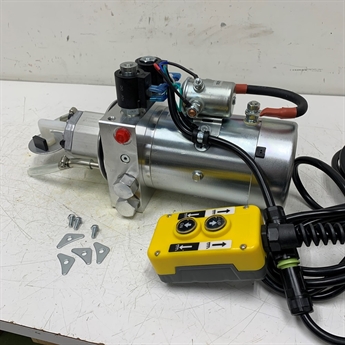

12 VOLT DC DOUBLE ACTING POWER UNIT

Brand new BUCHER WUXI Hydraulics. Hydraulic power units for operating double acting hydraulic cylinders. Ideal for many applications including dump trailers, flatbed dumps, forklift stackers, lift gates, pallet trucks, aerial lifts, auxiliary power and many other applications. 12 Volt DC solenoid valve with check valve for directional control of double acting cylinder. Built-in check, adjustable main relief valve and work port relief valve on retract port.

SPECIFICATIONS
  • Power 2 HP
  • Voltage 12 DC
  • Amperage 260 Amps
  • Duty  Intermittent
  • Flow 1.4 GPM at 1500 PSI
  • Pressure 3000 PSI max.
  • Relief Valve Setting  Adjustable set @ 3000 PSI
  • Relief Port Valve Setting  Adjustable set @ 1500 PSI
  • Pendant Control Yes
  • Valve Type  Double Acting
  • Valve Operation  12 Volt DC Solenoid
  • Ports SAE 6
  • Mounting Horizontal
  • Reservoir Size  2.1 Gallon
  • Reservoir Size Useable 1.7 Gallon
  • Reservoir Material Plastic
  • Size 26-1/4" x 7-1/8" x 8-3/4"
  • Shpg.  52 lbs.
