6.25x181.25 DA Three-Stage Telescoping Hydraulic Cylinder

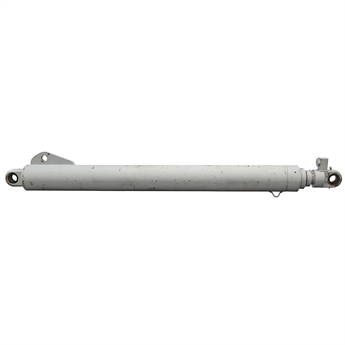

6.25" x 181.25" DOUBLE-ACTING TELESCOPING CYLINDER
Unused old inventory. Double acting three stage, telescoping hydraulic cylinder. McNeiulus numbers on cylinder AA165131 1142458.

SPECIFICATIONS
Double Acting Main Cyl Bore x Total Stroke 6.25" x 181.25" Thickness 0.375" Number of Stages 3 Pressure 2000 Rod Dia. 2.75"	Extend Port SAE 20 Retract Port SAE 16 Retracted Length 85.5" Shpg. 593 lbs.

END MOUNTINGS
Rod End Swivel Eye Thickness, Max 2.26" Pin-Center-To-Swivel Eye-End 2.39" Swivel Eye Width 1.75" Pin Hole 2"	Base End Swivel Eye Thickness, Max 2.26" Pin-Center-To-Swivel Eye-End 2.42" Swivel Eye Width 1.75" Pin Hole 2"
