Description

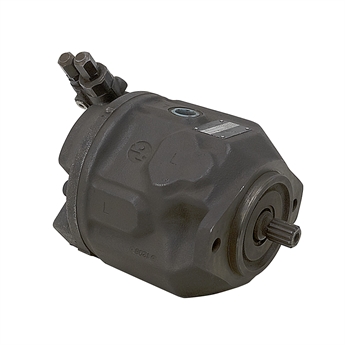

2.75 CU IN REXROTH A10V045DFR-30R-PSC61N00 HYDRAULIC VARIABLE AXIAL PISTON PUMP
Old unused inventory, Rexroth A10V045DFR-30R-PSC61N00 hydraulic variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuits. Pressure and flow control, electro-hydraulic adjustment of differential pressure , X-T open.

SPECIFICATIONS
  • Manufacturer Rexroth
  • Model A10V045DFR-30R-PSC61N00
  • Part number 5132-004-001
  • Series 52
  • Disp. 2.75 cu. in. / rev.
  • Pump Type Axial Piston
  • Rotation CW
  • Pressure:
       3600 PSI Cont.
       4600 PSI Int.
  • Speed:
       2600 RPM min.
       3120 RPM max.
  • Flow:
       18 GPM Cont.
       31 GPM Int.
  • Mount Two bolt SAE B
  • Shaft 0.85" dia. x 1-1/4" 13T spline
  • Inlet Port 1-1/2" four bolt flange, code 61
  • Outlet Port 1" four bolt flange. code 61
  • Case Drain SAE 10
  • Size 11-1/4" x 7" x 8-1/2"
  • Shpg. 49 lbs.
