Description
DESCRIPTION
 2.5" x 25" x 1" DA HYD CYL

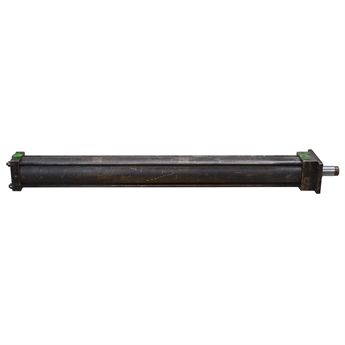

 Removed from service. Tie-rod style hydraulic cylinder. Lynnair model LH-21/2C33. Serial Number 159638.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke  2.5" x 25"
  • Barrel Thickness  0.125"
  • Gland Retainer  4-hole Tie-Rod Style Cylinder
  • Pressure  2500 PSI max.
  • Rod Dia.  1"
  • Ports  3/8 NPT
  • Retracted Length  31.75"
  • Gland Face to Rod Pin Center  1.625"
  • Shpg.  27 lbs.
END MOUNTINGS
  • Base End Tapped
  • Thread size-Pitch 3/4"-16"
  • Thread Depth 1.875"
  • Rod End Mount plate  Block With Four Bolt Holes
  • Block Length 4.625"
  • Block Width 3"
  • Block Thickness  .375"
  • Hole Spacing  3.875" x 2.187" Centers
  • Pin Holes  .375"
