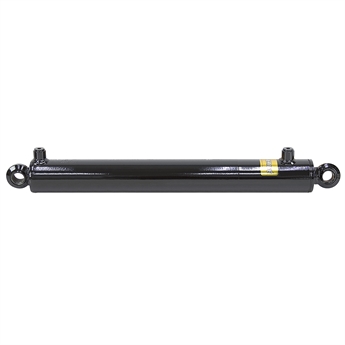

2.5x20x1.5 Double Acting Hydraulic Cylinder Wolverine by Prince Mfg WWSB2520-S

2.5" x 20" x 1.5" DA HYD CYL
Brand new WOLVERINE by PRINCE double acting cylinder with swivel eyes. Heavy duty welded construction with threaded-in gland design. Top port design with SAE O-ring ports for reliable and leak free connection. Spherical ball end swivel eye amount on both ends to allow for angular misallignment.

SPECIFICATIONS
Double Acting Bore x Stroke 2.5" x 20" Barrel Thickness 0.25" Gland Retainer Threaded in gland Pressure 3000 PSI max. Rod Dia. 1.5"	Column Load 3000 PSI max. @ full extension Ports SAE 8 Retracted Length 27.5" Shpg. 30 lbs.

END MOUNTINGS
Rod End Swivel-Ball Ball Width 0.97" Ball O.D. 2.25" Pin Hole 1"	Base End Swivel-Ball Ball Width 0.97" Ball O.D. 2.25" Pin Hole 1"
